oglplus/041_blob_mt.cpp

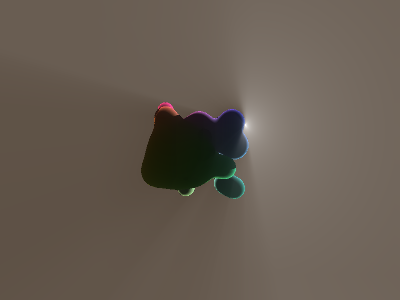

Shows heavily multi-threaded implicit surface polygonization

Note

Work-in-progress

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/bound/texture.hpp>
#include <oglplus/bound/framebuffer.hpp>
#include <oglplus/bound/renderbuffer.hpp>

#include <oglplus/shapes/tetrahedrons.hpp>
#include <oglplus/shapes/sky_box.hpp>
#include <oglplus/shapes/screen.hpp>
#include <oglplus/shapes/wrapper.hpp>

#include <oglplus/opt/list_init.hpp>

#include <cmath>

#include "example.hpp"
#include "example_mt.hpp"

namespace oglplus {

class SurfaceExample;
class SurfacePolygonizer;
class SurfaceDepthMapRenderer;
class SurfacePolyXFBData;

// Stores polygonized surface data that can be used to draw
// the surface
// Part of the main example (running in the main thread)
class SurfaceDrawData
{
public:
    const GLuint planes, workers, capacity, segment_size;

    Array<Buffer> positions, normals;

    std::vector<std::vector<GLuint>> n_vertices;

    std::vector<ExampleFrameSyncQueue> plane_to_poly, plane_to_draw;

    CamMatrixf camera, light;
    Mat4f camera_projection, light_projection;
    Vec3f camera_position, light_position, ndc_light_pos;

    GLuint viewport_width, viewport_height;

    SurfaceDrawData(GLuint pln, GLuint wrk, GLuint cap);
};

// Stores objects necessary for transform feedback in a polygonizer
// Part of a polygonizer (running in a separate thread)
class SurfacePolyXFBData
{
private:
    friend class SurfacePolygonizer;

    const GLuint planes;

    Array<TransformFeedback> xfb;

    Array<Query> query;

    std::vector<Reference<Buffer>> positions, normals;

    std::vector<GLuint>& n_vertices;

    ExampleFrameSyncQueue &plane_to_poly, &plane_to_draw;
public:
    SurfacePolyXFBData(SurfaceDrawData& draw_data, GLuint id);
};

// Common objects used by polygonizers
// Part of the main example
class SurfacePolygonizerCommon
{
public:
    Context gl;

    Program prog;
    static Program MakeProg(void);

    const unsigned grid_div;
    shapes::ShapeWrapperWithAdjacency grid;
    Buffer grid_offsets;
    void InitGridOffsets();

    Texture configurations;
    void InitCellConfigs(SurfaceExample& parent);

    double metaball_time;
    std::vector<CubicBezierLoop<Vec4f, double> > metaball_paths;
    std::vector<GLfloat> metaball_curr;
    Texture metaballs;
    void InitMetaballs(SurfaceExample& parent);
    void UpdateMetaballs(SurfaceExample& parent, double time_diff);

    SurfacePolygonizerCommon(SurfaceExample&);
};


// Surface polygonizer thread
class SurfacePolygonizer : public ExampleThread
{
private:
    friend class SurfaceExample;

    Context gl;

    SurfacePolygonizerCommon& common;

    SurfacePolyXFBData xfb_data;

    VertexArray grid_vao;

    GLuint inst_count, base_inst;
public:
    SurfacePolygonizer(SurfaceExample& parent, GLuint id);
    ~SurfacePolygonizer(void);

    void Cancel(void);

    void Polygonize(GLuint p);
    void Render(double time);
};

// Renders the surface depth map from the data generated
// by the polygonizers
class SurfaceDepthMapRenderer : public ExampleThread
{
private:
    Context gl;

    SurfaceDrawData& surface_data;

    Program& prog;
    Uniform<Mat4f> projection_matrix_0, projection_matrix_1;
    Uniform<Mat4f> view_matrix_0, view_matrix_1;

    Array<VertexArray> surface_vao;

    GLuint dmap_side;
    Framebuffer fbo;
    Texture dummy_map;

    ExampleFrameSyncQueue &depth_map_ready, &depth_map_needed;
public:
    SurfaceDepthMapRenderer(SurfaceExample& parent);

    void Cancel(void);
    void Render(double);
};

class SurfaceLightMapRenderer : public ExampleThread
{
private:
    Context gl;

    SurfaceDrawData& surface_data;

    Program& prog;
    Uniform<Mat4f> projection_matrix, camera_matrix;
    Uniform<Vec3f> ndc_light_pos;
    Uniform<Vec2f> screen_size;
    Uniform<GLfloat> scale;

    UniformSubroutines subroutines;
    SubroutineUniform get_intensity;
    Subroutine get_intensity_surface, get_intensity_background;


    Array<VertexArray> surface_vao;
    FaceOrientation surface_face_winding;

    shapes::ShapeWrapper sky_box;

    Framebuffer fbo;
    Renderbuffer rbo;

    GLuint width, height;

    ExampleFrameSyncQueue &light_map_ready, &light_map_needed;
public:
    SurfaceLightMapRenderer(SurfaceExample& parent);

    void Cancel(void);
    void Render(double);
};

class SurfaceColorMapRenderer : public ExampleThread
{
private:
    Context gl;

    SurfaceDrawData& surface_data;

    Program& prog;
    Uniform<Mat4f> projection_matrix, camera_matrix, light_matrix;
    Uniform<Vec3f> camera_position, light_position;

    Array<VertexArray> surface_vao;

    Framebuffer fbo;
    Renderbuffer rbo;

    GLuint width, height;

    ExampleFrameSyncQueue &color_map_ready, &color_map_needed;
public:
    SurfaceColorMapRenderer(SurfaceExample& parent);

    void Cancel(void);
    void Render(double);
};

class SurfaceExample : public Example
{
private:
    friend class SurfacePolygonizer;
    friend class SurfaceDepthMapRenderer;
    friend class SurfaceLightMapRenderer;
    friend class SurfaceColorMapRenderer;

    Context gl;

    // common resources used by the surface
    // polygonizer(s)
    SurfacePolygonizerCommon polygonizer_common;

    Texture depth_map, color_map, light_map;
    ExampleFrameSyncQueue depth_map_ready, depth_map_needed;
    ExampleFrameSyncQueue color_map_ready, color_map_needed;
    ExampleFrameSyncQueue light_map_ready, light_map_needed;

    Program depth_prog;
    static Program MakeDepthProg(void);

    Program color_prog;
    static Program MakeColorProg(void);

    Program light_ray_prog;
    static Program MakeLightMapProg(void);

    Program screen_prog;
    static Program MakeScreenProg(void);
    Uniform<Vec3f> ndc_light_pos;
    Uniform<Vec2f> screen_size;

    SurfaceDrawData surface_data;

    shapes::ShapeWrapper screen;
public:
    SurfaceExample(const ExampleParams& params);

    void Reshape(GLuint width, GLuint height);
    void Render(ExampleClock& clock);
    double ScreenshotTime(void) const { return 50.8; }

    bool Continue(double time) { return time < 120.0; }

    GLuint CellConfigTexUnit(void) const { return 0; }
    GLuint MetaballPosTexUnit(void) const { return 1; }
    GLuint DepthMapTexUnit(void) const { return 2; }
    GLuint DummyMapTexUnit(void) const { return 3; }
    GLuint ColorMapTexUnit(void) const { return 4; }
    GLuint LightMapTexUnit(void) const { return 5; }
};

SurfaceDrawData::SurfaceDrawData(GLuint pln, GLuint wrkr, GLuint cap)
 : planes(pln)
 , workers(wrkr)
 , capacity(cap)
 , segment_size(capacity*sizeof(GLfloat) / workers)
 , positions(planes)
 , normals(planes)
 , n_vertices(workers, std::vector<GLuint>(planes, 0))
 , plane_to_poly(workers)
 , plane_to_draw(workers)
{
    std::vector<GLfloat> init_data(capacity, 0.0f);

    for(GLuint p=0; p!=planes; ++p)
    {
        positions[p].Bind(Buffer::Target::Array);
        Buffer::Data(Buffer::Target::Array, init_data, BufferUsage::DynamicCopy);

        normals[p].Bind(Buffer::Target::Array);
        Buffer::Data(Buffer::Target::Array, init_data, BufferUsage::DynamicCopy);
    }

    for(GLuint w=0; w!=workers; ++w)
    {
        plane_to_poly[w].Push(0);
    }
}

SurfacePolyXFBData::SurfacePolyXFBData(SurfaceDrawData& draw_data, GLuint id)
 : planes(draw_data.planes)
 , xfb(planes)
 , query(planes)
 , n_vertices(draw_data.n_vertices[id])
 , plane_to_poly(draw_data.plane_to_poly[id])
 , plane_to_draw(draw_data.plane_to_draw[id])
{
    const GLuint size = draw_data.segment_size;
    const GLintptr offs = size*id;
    for(GLuint i=0; i!=planes; ++i)
    {
        positions.push_back(draw_data.positions[i]);
        normals.push_back(draw_data.normals[i]);

        xfb[i].Bind();

        positions[i].Bind(Buffer::Target::TransformFeedback);
        positions[i].BindRange(Buffer::IndexedTarget::TransformFeedback, 0, offs, size);

        normals[i].Bind(Buffer::Target::TransformFeedback);
        normals[i].BindRange(Buffer::IndexedTarget::TransformFeedback, 1, offs, size);
    }
    DefaultTransformFeedback().Bind();
}

Program SurfacePolygonizerCommon::MakeProg(void)
{
    Program prog;

    VertexShader vs(ObjectDesc("Polygonization vertex"));
    vs.Source(
        "#version 330\n"
        "uniform sampler1D Metaballs;"

        "in vec3 Position;"
        "in vec3 GridOffset;"

        "out vec3 vertPosition;"
        "out vec3 vertCenter;"
        "out float vertValue;"
        "flat out int vertInside;"

        "void main(void)"
        "{"
        "   vertPosition = Position + GridOffset;"

        "   float Sum = 0.0;"
        "   vertValue = 0.0;"
        "   vertCenter = vec3(0.0, 0.0, 0.0);"
        "   int Ball = 0, BallCount = textureSize(Metaballs, 0);"
        "   while(Ball != BallCount)"
        "   {"
        "       vec4 Metaball = texelFetch(Metaballs, Ball, 0);"
        "       vec3 Center = Metaball.xyz;"
        "       float Radius = Metaball.w;"
        "       vec3 Vect = vertPosition - Center;"
        "       float Tmp = (Radius*Radius)/dot(Vect, Vect);"
        "       vertValue += Tmp - 0.25;"
        "       float Mul = max(Tmp - 0.10, 0.0);"
        "       vertCenter += Mul * Center;"
        "       Sum += Mul;"
        "       ++Ball;"
        "   }"
        "   if(Sum > 0.0) vertCenter = vertCenter / Sum;"
        "   vertInside = (vertValue >= 0.0)?1:0;"
        "}"
    ).Compile();
    prog.AttachShader(vs);

    GeometryShader gs(ObjectDesc("Polygonization geometry"));
    gs.Source(
        "#version 330\n"
        "layout(triangles_adjacency) in;"
        "layout(triangle_strip, max_vertices = 4) out;"

        "uniform usampler1D Configurations;"

        "in vec3 vertPosition[6];"
        "in vec3 vertCenter[6];"
        "in float vertValue[6];"
        "flat in int vertInside[6];"

        "out vec3 xfbPosition;"
        "out vec3 xfbNormal;"

        "float find_t(const uint i1, const uint i2)"
        "{"
        "   float d = vertValue[i2] - vertValue[i1];"
        "   if(d == 0.0) return 0.5;"
        "   else return -vertValue[i1]/d;"
        "}"

        "void make_vertex(const uint i1, const uint i2)"
        "{"
        "   float t = find_t(i1, i2);"
        "   xfbPosition = mix(vertPosition[i1], vertPosition[i2], t);"
        "   vec3 Center = mix(vertCenter[i1], vertCenter[i2], t);"
        "   xfbNormal = xfbPosition - Center;"
        "   EmitVertex();"
        "}"

        "void make_triangle(const uvec4 v1, const uvec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   EndPrimitive();"
        "}"

        "void make_quad(const uvec4 v1, const uvec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   make_vertex(v1.w, v2.w);"
        "   EndPrimitive();"
        "}"

        "void process_tetrahedron(int a, int b, int c, int d)"
        "{"
        "   ivec4 i = ivec4("
        "       vertInside[a],"
        "       vertInside[b],"
        "       vertInside[c],"
        "       vertInside[d] "
        "   );"
        "   int si = int(dot(i, ivec4(1, 1, 1, 1))) % 4;"
        "   if(si != 0)"
        "   {"
        "       int iv = int(dot(i, ivec4(16, 8, 4, 2)));"
        "       uvec4 v1 = texelFetch(Configurations, iv+0, 0);"
        "       uvec4 v2 = texelFetch(Configurations, iv+1, 0);"
        "       if(si % 2 == 0) make_quad(v1, v2);"
        "       else make_triangle(v1, v2);"
        "   }"
        "}"

        "void main(void)"
        "{"
        "   process_tetrahedron(0, 2, 4, 1);"
        "}"
    ).Compile();
    prog.AttachShader(gs);

    const GLchar* xfb_varyings[2] = {"xfbPosition", "xfbNormal"};
    prog.TransformFeedbackVaryings(
        xfb_varyings,
        TransformFeedbackMode::SeparateAttribs
    );

    prog.Link().Use();

    return std::move(prog);
}

void SurfacePolygonizerCommon::InitGridOffsets(void)
{
    int side = 1;
    int s = 2*side+1;
    int k = 0;
    std::vector<GLfloat> go_data(s*s*s*3);

    for(int z=-side; z!=side; ++z)
    for(int y=-side; y!=side; ++y)
    for(int x=-side; x!=side; ++x)
    {
        go_data[k++] = x;
        go_data[k++] = y;
        go_data[k++] = z;
    }

    grid_offsets.Bind(Buffer::Target::Array);
    Buffer::Data(Buffer::Target::Array, go_data);
}

void SurfacePolygonizerCommon::InitCellConfigs(SurfaceExample& parent)
{
    GLuint tex_unit = parent.CellConfigTexUnit();
    Texture::Active(tex_unit);
    UniformSampler(prog, "Configurations").Set(tex_unit);
    {
        const GLubyte a = 0x0, b = 0x2, c = 0x4, d = 0x1, x = 0xFF;
        const GLubyte  tex_data[] = {
            x, x, x, x,   x, x, x, x,
            a, c, b, x,   d, d, d, x,
            b, d, a, x,   c, c, c, x,
            b, b, a, a,   c, d, c, d,
            a, d, c, x,   b, b, b, x,
            a, a, c, c,   b, d, b, d,
            a, a, d, d,   c, b, c, b,
            a, a, a, x,   b, d, c, x,
            c, d, b, x,   a, a, a, x,
            c, c, b, b,   a, d, a, d,
            b, d, b, d,   c, c, a, a,
            b, b, b, x,   c, d, a, x,
            c, d, c, d,   a, a, b, b,
            c, c, c, x,   a, d, b, x,
            d, d, d, x,   a, b, c, x,
            x, x, x, x,   x, x, x, x
        };
        oglplus::Context::Bound(Texture::Target::_1D, configurations)
            .MinFilter(TextureMinFilter::Nearest)
            .MagFilter(TextureMagFilter::Nearest)
            .WrapS(TextureWrap::ClampToEdge)
            .Image1D(
                0,
                InternalFormat::RGBA8UI,
                sizeof(tex_data),
                0,
                Format::RGBAInteger,
                DataType::UnsignedByte,
                tex_data
            );
    }
}

void SurfacePolygonizerCommon::InitMetaballs(SurfaceExample& parent)
{
    metaball_time = 0.0;
    std::srand(4234);
    // initialize the metaball paths and sizes
    for(GLuint i=0; i!=24; ++i)
    {
        GLuint j = 0, n = 3+std::rand()%3;
        std::vector<Vec4f> points(n);
        GLfloat ball_size = 0.15*std::rand()/GLdouble(RAND_MAX) + 0.20;
        while(j != n)
        {
            points[j] = Vec4f(
                1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                ball_size
            );
            ++j;
        }
        metaball_paths.push_back(CubicBezierLoop<Vec4f, double>(points));
    }

    metaball_curr.resize(metaball_paths.size() * 4);

    Texture::Active(parent.MetaballPosTexUnit());
    UniformSampler(prog, "Metaballs").Set(parent.MetaballPosTexUnit());
    oglplus::Context::Bound(Texture::Target::_1D, metaballs)
        .MinFilter(TextureMinFilter::Nearest)
        .MagFilter(TextureMagFilter::Nearest)
        .WrapS(TextureWrap::ClampToEdge)
        .Image1D(
            0,
            InternalFormat::RGBA32F,
            metaball_paths.size(),
            0,
            Format::RGBA,
            DataType::Float,
            nullptr
        );

    UpdateMetaballs(parent, 0.0);
}

void SurfacePolygonizerCommon::UpdateMetaballs(SurfaceExample& parent, double time_diff)
{
    metaball_time += time_diff;
    auto path_i=metaball_paths.begin();
    auto path_e=metaball_paths.end();
    auto mb_i=metaball_curr.begin();

    while(path_i != path_e)
    {
        Vec4f pos = path_i->Position(metaball_time / 13.0);

        for(GLuint comp=0; comp != 4; ++comp)
        {
            assert(mb_i != metaball_curr.end());
            *mb_i++ = pos.At(comp);
        }
        ++path_i;
    }
    assert(mb_i == metaball_curr.end());

    Texture::Active(parent.MetaballPosTexUnit());
    metaballs.Bind(Texture::Target::_1D);
    Texture::Image1D(
        Texture::Target::_1D,
        0,
        InternalFormat::RGBA32F,
        metaball_paths.size(),
        0,
        Format::RGBA,
        DataType::Float,
        metaball_curr.data()
    );
}

SurfacePolygonizerCommon::SurfacePolygonizerCommon(SurfaceExample& parent)
 : prog(MakeProg())
 , grid_div(32)
 , grid(List("Position").Get(), shapes::Tetrahedrons(1.0, grid_div))
{
    InitGridOffsets();
    InitCellConfigs(parent);
    InitMetaballs(parent);
}

SurfacePolygonizer::SurfacePolygonizer(SurfaceExample& parent, GLuint id)
 : gl()
 , common(parent.polygonizer_common)
 , xfb_data(parent.surface_data, id)
 , inst_count(8 / parent.surface_data.workers)
 , base_inst(inst_count * id)
{
    common.prog.Use();
    grid_vao = common.grid.VAOForProgram(common.prog);

    common.grid_offsets.Bind(Buffer::Target::Array);
    (common.prog|"GridOffset").Setup<Vec3f>().Enable().Divisor(1);

    Texture::Active(parent.CellConfigTexUnit());
    common.configurations.Bind(Texture::Target::_1D);

    Texture::Active(parent.MetaballPosTexUnit());
    common.metaballs.Bind(Texture::Target::_1D);

    gl.Enable(Capability::RasterizerDiscard);
}

SurfacePolygonizer::~SurfacePolygonizer(void)
{
    Cancel();
}

void SurfacePolygonizer::Cancel(void)
{
    xfb_data.plane_to_draw.Cancel();
    xfb_data.plane_to_poly.Cancel();
}

void SurfacePolygonizer::Polygonize(GLuint p)
{
    xfb_data.xfb[p].Bind();

    Query::Target query_target = Query::Target::TransformFeedbackPrimitivesWritten;
    Query::Activator qrya(xfb_data.query[p], query_target);

    TransformFeedback::Activator xfba(TransformFeedbackPrimitiveType::Triangles);

    common.grid.Draw(inst_count, base_inst);

    xfba.Finish();
    qrya.Finish();

    xfb_data.query[p].WaitForResult(xfb_data.n_vertices[p]);
}

void SurfacePolygonizer::Render(double)
{
    GLuint plane = xfb_data.plane_to_poly.Pop();

    Polygonize(plane);

    xfb_data.plane_to_draw.Push(plane);
}



SurfaceDepthMapRenderer::SurfaceDepthMapRenderer(SurfaceExample& parent)
 : gl()
 , surface_data(parent.surface_data)
 , prog(parent.depth_prog)
 , projection_matrix_0(prog, "ProjectionMatrix[0]")
 , projection_matrix_1(prog, "ProjectionMatrix[1]")
 , view_matrix_0(prog, "ViewMatrix[0]")
 , view_matrix_1(prog, "ViewMatrix[1]")
 , surface_vao(surface_data.planes)
 , dmap_side(1024)
 , depth_map_ready(parent.depth_map_ready)
 , depth_map_needed(parent.depth_map_needed)
{
    for(GLuint p=0; p!=surface_data.planes; ++p)
    {
        surface_vao[p].Bind();

        surface_data.positions[p].Bind(Buffer::Target::Array);
        (prog|"Position").Setup<Vec3f>().Enable();
    }

    Texture::Active(parent.DepthMapTexUnit());
    gl.Bound(Texture::Target::_2DArray, parent.depth_map)
        .MinFilter(TextureMinFilter::Linear)
        .MagFilter(TextureMagFilter::Linear)
        .WrapS(TextureWrap::ClampToEdge)
        .WrapT(TextureWrap::ClampToEdge)
        .WrapR(TextureWrap::ClampToEdge)
        .Image3D(
            0,
            InternalFormat::DepthComponent32,
            dmap_side, dmap_side, 2,
            0,
            Format::DepthComponent,
            DataType::Float,
            nullptr
        );

    Texture::Active(parent.DummyMapTexUnit());
    gl.Bound(Texture::Target::_2DArray, dummy_map)
        .MinFilter(TextureMinFilter::Nearest)
        .MagFilter(TextureMagFilter::Nearest)
        .WrapS(TextureWrap::ClampToEdge)
        .WrapT(TextureWrap::ClampToEdge)
        .WrapR(TextureWrap::ClampToEdge)
        .Image3D(
            0,
            InternalFormat::RGBA,
            dmap_side, dmap_side, 2,
            0,
            Format::RGBA,
            DataType::UnsignedByte,
            nullptr
        );

    gl.Bound(Framebuffer::Target::Draw, fbo)
        .AttachTexture(FramebufferAttachment::Depth, parent.depth_map, 0)
        .AttachTexture(FramebufferAttachment::Color, dummy_map, 0);

    gl.ClearDepth(1.0);
    gl.Enable(Capability::DepthTest);

    gl.Viewport(dmap_side, dmap_side);

    prog.Use();
    projection_matrix_1.Set(surface_data.light_projection);
}

void SurfaceDepthMapRenderer::Cancel(void)
{
    depth_map_needed.Cancel();
    depth_map_ready.Cancel();
}

void SurfaceDepthMapRenderer::Render(double)
{
    GLuint p = depth_map_needed.Pop();

    gl.Clear().DepthBuffer();

    projection_matrix_0.Set(surface_data.camera_projection);
    view_matrix_0.Set(surface_data.camera);
    view_matrix_1.Set(surface_data.light);

    surface_vao[p].Bind();
    for(GLuint w=0; w!=surface_data.workers; ++w)
    {
        gl.DrawArrays(
            PrimitiveType::Triangles,
            surface_data.segment_size*w,
            surface_data.n_vertices[w][p]*3
        );
    }

    depth_map_ready.Push(p);
}

SurfaceLightMapRenderer::SurfaceLightMapRenderer(SurfaceExample& parent)
 : gl()
 , surface_data(parent.surface_data)
 , prog(parent.light_ray_prog)
 , projection_matrix(prog, "ProjectionMatrix")
 , camera_matrix(prog, "CameraMatrix")
 , ndc_light_pos(prog, "NDCLightPos")
 , screen_size(prog, "ScreenSize")
 , scale(prog, "Scale")
 , subroutines(prog, ShaderType::Fragment)
 , get_intensity(prog, ShaderType::Fragment, "GetIntensity")
 , get_intensity_surface(prog, ShaderType::Fragment, "GetIntensitySurface")
 , get_intensity_background(prog, ShaderType::Fragment, "GetIntensityBackground")
 , surface_vao(surface_data.planes)
 , surface_face_winding(parent.polygonizer_common.grid.FaceWinding())
 , sky_box(List("Position").Get(), shapes::SkyBox(), prog)
 , width(0)
 , height(0)
 , light_map_ready(parent.light_map_ready)
 , light_map_needed(parent.light_map_needed)
{
    for(GLuint p=0; p!=surface_data.planes; ++p)
    {
        surface_vao[p].Bind();

        surface_data.positions[p].Bind(Buffer::Target::Array);
        (prog|"Position").Setup<Vec3f>().Enable();
    }

    Texture::Active(parent.LightMapTexUnit());
    gl.Bound(Texture::Target::Rectangle, parent.light_map)
        .MinFilter(TextureMinFilter::Linear)
        .MagFilter(TextureMagFilter::Linear)
        .WrapS(TextureWrap::ClampToEdge)
        .WrapT(TextureWrap::ClampToEdge);

    gl.Bind(Renderbuffer::Target::Renderbuffer, rbo);


    gl.Bound(Framebuffer::Target::Draw, fbo)
        .AttachTexture(FramebufferAttachment::Color, parent.light_map, 0)
        .AttachRenderbuffer(FramebufferAttachment::Depth, rbo);

    gl.Enable(Capability::CullFace);
    gl.CullFace(Face::Back);

    prog.Use();
}

void SurfaceLightMapRenderer::Cancel(void)
{
    light_map_ready.Cancel();
    light_map_needed.Cancel();
}

void SurfaceLightMapRenderer::Render(double)
{
    GLuint p = light_map_needed.Pop();

    if(width != surface_data.viewport_width || height != surface_data.viewport_height)
    {
        width = surface_data.viewport_width;
        height = surface_data.viewport_height;

        Texture::Image2D(
            Texture::Target::Rectangle,
            0,
            InternalFormat::Red,
            width/2, height/2,
            0,
            Format::Red,
            DataType::UnsignedByte,
            nullptr
        );
        Renderbuffer::Storage(
            Renderbuffer::Target::Renderbuffer,
            InternalFormat::DepthComponent,
            width/2,
            height/2
        );
        gl.Viewport(width/2, height/2);
        screen_size.Set(width/2, height/2);
        projection_matrix.Set(surface_data.camera_projection);
    }
    camera_matrix.Set(surface_data.camera);
    ndc_light_pos.Set(surface_data.ndc_light_pos);

    scale.Set(30.0);
    subroutines.Assign(get_intensity, get_intensity_background).Apply();

    sky_box.Use();
    sky_box.Draw();

    scale.Set(1.0);
    subroutines.Assign(get_intensity, get_intensity_surface).Apply();

    surface_vao[p].Bind();
    gl.FrontFace(surface_face_winding);
    for(GLuint w=0; w!=surface_data.workers; ++w)
    {
        gl.DrawArrays(
            PrimitiveType::Triangles,
            surface_data.segment_size*w,
            surface_data.n_vertices[w][p]*3
        );
    }

    light_map_ready.Push(p);
}

SurfaceColorMapRenderer::SurfaceColorMapRenderer(SurfaceExample& parent)
 : gl()
 , surface_data(parent.surface_data)
 , prog(parent.color_prog)
 , projection_matrix(prog, "ProjectionMatrix")
 , camera_matrix(prog, "CameraMatrix")
 , light_matrix(prog, "LightMatrix")
 , camera_position(prog, "CameraPosition")
 , light_position(prog, "LightPosition")
 , surface_vao(surface_data.planes)
 , width(0)
 , height(0)
 , color_map_ready(parent.color_map_ready)
 , color_map_needed(parent.color_map_needed)
{
    for(GLuint p=0; p!=surface_data.planes; ++p)
    {
        surface_vao[p].Bind();

        surface_data.positions[p].Bind(Buffer::Target::Array);
        (prog|"Position").Setup<Vec3f>().Enable();

        surface_data.normals[p].Bind(Buffer::Target::Array);
        (prog|"Normal").Setup<Vec3f>().Enable();
    }

    prog.Use();

    Texture::Active(parent.DepthMapTexUnit());
    parent.depth_map.Bind(Texture::Target::_2DArray);
    UniformSampler(prog, "DepthMap").Set(parent.DepthMapTexUnit());

    Uniform<Mat4f>(prog, "LightProjMatrix").Set(surface_data.light_projection);

    Texture::Active(parent.ColorMapTexUnit());
    gl.Bound(Texture::Target::Rectangle, parent.color_map)
        .MinFilter(TextureMinFilter::Nearest)
        .MagFilter(TextureMagFilter::Nearest)
        .WrapS(TextureWrap::ClampToEdge)
        .WrapT(TextureWrap::ClampToEdge);

    gl.Bind(Renderbuffer::Target::Renderbuffer, rbo);

    gl.Bound(Framebuffer::Target::Draw, fbo)
        .AttachTexture(FramebufferAttachment::Color, parent.color_map, 0)
        .AttachRenderbuffer(FramebufferAttachment::Depth, rbo);

    gl.ClearColor(0.35f, 0.30f, 0.25f, 0.0f);
    gl.ClearDepth(1.0);
    gl.Enable(Capability::DepthTest);

    gl.Enable(Capability::CullFace);
    gl.CullFace(Face::Back);
    gl.FrontFace(parent.polygonizer_common.grid.FaceWinding());
}

void SurfaceColorMapRenderer::Cancel(void)
{
    color_map_ready.Cancel();
    color_map_needed.Cancel();
}

void SurfaceColorMapRenderer::Render(double)
{
    GLuint p = color_map_needed.Pop();

    gl.Clear().ColorBuffer().DepthBuffer();

    if(width != surface_data.viewport_width || height != surface_data.viewport_height)
    {
        width = surface_data.viewport_width;
        height = surface_data.viewport_height;

        Texture::Image2D(
            Texture::Target::Rectangle,
            0,
            InternalFormat::RGB,
            width, height,
            0,
            Format::RGB,
            DataType::UnsignedByte,
            nullptr
        );
        Renderbuffer::Storage(
            Renderbuffer::Target::Renderbuffer,
            InternalFormat::DepthComponent,
            width,
            height
        );
        gl.Viewport(width, height);
        projection_matrix.Set(surface_data.camera_projection);
    }
    camera_matrix.Set(surface_data.camera);
    light_matrix.Set(surface_data.light);
    camera_position.Set(surface_data.camera_position);
    light_position.Set(surface_data.light_position);

    surface_vao[p].Bind();
    for(GLuint w=0; w!=surface_data.workers; ++w)
    {
        gl.DrawArrays(
            PrimitiveType::Triangles,
            surface_data.segment_size*w,
            surface_data.n_vertices[w][p]*3
        );
    }

    color_map_ready.Push(p);
}


Program SurfaceExample::MakeDepthProg(void)
{
    Program prog(ObjectDesc("Depth map"));

    VertexShader vs(ObjectDesc("Depth map vertex"));
    vs.Source(
        "#version 330\n"

        "in vec4 Position;"

        "void main(void)"
        "{"
        "   gl_Position = Position;"
        "}"
    ).Compile();
    prog.AttachShader(vs);

    GeometryShader gs(ObjectDesc("Depth map geometry"));
    gs.Source(
        "#version 330\n"
        "#define NL 2\n"
        "layout(triangles) in;"
        "layout(triangle_strip, max_vertices=6) out;"

        "uniform mat4 ProjectionMatrix[NL];"
        "uniform mat4 ViewMatrix[NL];"

        "in vec4 vertPosition[];"

        "flat out int geomLayer;"

        "void main(void)"
        "{"
        "   for(int l=0; l!=NL; ++l)"
        "   {"
        "       gl_Layer = l;"
        "       geomLayer = l;"
        "       mat4 Matrix = ProjectionMatrix[l]*ViewMatrix[l];"
        "       for(int v=0; v!=3; ++v)"
        "       {"
        "           gl_Position = Matrix * gl_in[v].gl_Position;"
        "           EmitVertex();"
        "       }"
        "       EndPrimitive();"
        "   }"
        "}"
    ).Compile();
    prog.AttachShader(gs);

    FragmentShader fs(ObjectDesc("Depth map fragment"));
    fs.Source(
        "#version 430\n"

        "flat in int geomLayer;"

        "void main(void)"
        "{"
        "   if((geomLayer == 1) == (gl_FrontFacing))"
        "       discard;"
        "}"
    ).Compile();
    prog.AttachShader(fs);

    prog.Link().Use();

    return std::move(prog);
}

Program SurfaceExample::MakeColorProg(void)
{
    Program prog(ObjectDesc("Color"));

    VertexShader vs(ObjectDesc("Color vertex"));
    vs.Source(
        "#version 330\n"

        "uniform vec3 CameraPosition, LightPosition;"
        "uniform mat4 ProjectionMatrix, CameraMatrix;"
        "uniform mat4 LightProjMatrix, LightMatrix;"
        "mat4 Matrix = ProjectionMatrix * CameraMatrix;"
        "mat4 LtMat = LightProjMatrix * LightMatrix;"

        "in vec4 Position;"
        "in vec3 Normal;"

        "out vec4 vertPosition;"
        "out vec3 vertColor;"
        "out vec3 vertNormal;"
        "out vec3 vertViewDir;"
        "out vec3 vertLightDir;"
        "out vec4 vertShadowCoord;"

        "void main(void)"
        "{"
        "   vertColor = normalize(vec3(1,1,1)-Position.xyz);"
        "   vertNormal = Normal;"
        "   vertViewDir = CameraPosition - Position.xyz;"
        "   vertLightDir = LightPosition - Position.xyz;"
        "   vertShadowCoord = LtMat * Position;"
        "   vertPosition = Matrix * Position;"
        "   gl_Position = vertPosition;"
        "}"
    ).Compile();
    prog.AttachShader(vs);

    FragmentShader fs(ObjectDesc("Color fragment"));
    fs.Source(
        "#version 330\n"

        "uniform mat4 CameraMatrix;"
        "uniform mat4 LightMatrix;"
        "uniform sampler2DArray DepthMap;"

        "in vec4 vertPosition;"
        "in vec3 vertColor;"
        "in vec3 vertNormal;"
        "in vec3 vertViewDir;"
        "in vec3 vertLightDir;"
        "in vec4 vertShadowCoord;"

        "out vec3 fragColor;"

        "void main(void)"
        "{"
        "   vec3 Normal = normalize(vertNormal);"
        "   vec3 ViewDir = normalize(vertViewDir);"
        "   vec3 LightDir = normalize(vertLightDir);"

        "   vec4 ShadowCoord = vec4(("
        "           vertShadowCoord.xyz/"
        "           vertShadowCoord.w"
        "       )*0.5+0.5,"
        "       1.0"
        "   );"

        "   vec4 DepthCoord = vec4(("
        "           vertPosition.xyz/"
        "           vertPosition.w"
        "       )*0.5+0.5,"
        "       0.0"
        "   );"

        "   float sd = texture(DepthMap, ShadowCoord.xyw).x;"
        "   float s = 1.0+clamp(pow((sd-ShadowCoord.z)*16.0, 3.0), -1.0, 0.0);"

        "   float bd = texture(DepthMap, DepthCoord.xyw).x;"
        "   if(bd >= 0.95) bd = DepthCoord.z;"
        "   float dd = pow(1.0-clamp((bd-DepthCoord.z)*5.0, 0.0, 1.0), 4.0);"

        "   float ln = max(dot(Normal, LightDir)+0.1, 0.0);"
        "   float vn = max(dot(Normal, ViewDir), 0.0);"
        "   float nn = 1.0-vn;"
        "   float ol = sqrt(max(-dot(ViewDir, LightDir)+0.9, 0.0));"

        "   float l = 0.1;"
        "   l += 0.1*dd;"
        "   l += 0.9*dd*s*nn*ol;"
        "   l += 0.9*pow(ln, 2.0)*s;"
        "   fragColor = vertColor*l;"
        "}"
    ).Compile();
    prog.AttachShader(fs);

    prog.Link().Use();

    return std::move(prog);
}

Program SurfaceExample::MakeLightMapProg(void)
{
    Program prog(ObjectDesc("Light ray"));

    VertexShader vs(ObjectDesc("Light ray vertex"));
    vs.Source(
        "#version 400\n"

        "uniform mat4 ProjectionMatrix, CameraMatrix;"
        "uniform float Scale;"

        "in vec3 Position;"

        "void main(void)"
        "{"
        "   gl_Position = vec4(Position * Scale, 1.0);"
        "   gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
        "}"
    ).Compile();
    prog.AttachShader(vs);

    FragmentShader fs(ObjectDesc("Light ray fragment"));
    fs.Source(
        "#version 400\n"

        "uniform vec3 NDCLightPos;"
        "uniform vec2 ScreenSize;"

        "subroutine float GetIntensityFunc(void);"

        "subroutine uniform GetIntensityFunc GetIntensity;"

        "subroutine(GetIntensityFunc)"
        "float GetIntensitySurface(void)"
        "{"
        "   return 0.0;"
        "}"

        "subroutine(GetIntensityFunc)"
        "float GetIntensityBackground(void)"
        "{"
        "   vec2 LPos = (NDCLightPos.xy*0.5+0.5)*ScreenSize;"
        "   vec2 d = gl_FragCoord.xy - LPos;"
        "   return clamp(1.0 / sqrt(length(d)+1), 0.0, 1.0);"
        "}"

        "out float fragIntensity;"

        "void main(void)"
        "{"
        "   fragIntensity = GetIntensity();"
        "}"
    ).Compile();
    prog.AttachShader(fs);

    prog.Link().Use();

    return std::move(prog);
}


Program SurfaceExample::MakeScreenProg(void)
{
    Program prog(ObjectDesc("Screen"));

    VertexShader vs(ObjectDesc("Screen vertex"));
    vs.Source(
        "#version 330\n"

        "in vec4 Position;"
        "in vec2 TexCoord;"

        "out vec2 vertTexCoord;"

        "void main(void)"
        "{"
        "   vertTexCoord = TexCoord;"
        "   gl_Position = Position;"
        "}"
    ).Compile();
    prog.AttachShader(vs);

    FragmentShader fs(ObjectDesc("Screen fragment"));
    fs.Source(
        "#version 330\n"

        "uniform sampler2DRect ColorMap, LightMap;"
        "uniform vec3 NDCLightPos;"
        "uniform vec2 ScreenSize;"

        "in vec2 vertTexCoord;"

        "out vec3 fragColor;"

        "void main(void)"
        "{"
        "   fragColor = texture(ColorMap, gl_FragCoord.xy).rgb;"
        "   if(NDCLightPos.z > 1.0) return;"
        "   vec2 LMCoord = gl_FragCoord.xy * 0.5;"
        "   vec2 LPos = (NDCLightPos.xy*0.5+0.5)*ScreenSize*0.5;"
        "   vec2 Ray = LMCoord - LPos;"
        "   float Len = length(Ray);"
        "   int NSampl = int(max(abs(Ray.x), abs(Ray.y)))+1;"
        "   vec2 RayStep = Ray / NSampl;"
        "   float Light = texture(LightMap, LMCoord).x;"
        "   NSampl = min(NSampl, int(min(ScreenSize.x, ScreenSize.y)*0.25));"
        "   for(int s=0; s!=NSampl;++s)"
        "   {"
        "       Light += texture(LightMap, LPos+RayStep*s).x;"
        "   }"
        "   Light /= NSampl;"
        "   Light = min(Light, 1.0);"
        "   fragColor = mix(fragColor, vec3(1,1,1), Light);"
        "}"
    ).Compile();
    prog.AttachShader(fs);

    prog.Link().Use();

    return std::move(prog);
}

SurfaceExample::SurfaceExample(const ExampleParams& /*params*/)
 : gl()
 , polygonizer_common(*this)
 , depth_prog(MakeDepthProg())
 , color_prog(MakeColorProg())
 , light_ray_prog(MakeLightMapProg())
 , screen_prog(MakeScreenProg())
 , ndc_light_pos(screen_prog, "NDCLightPos")
 , screen_size(screen_prog, "ScreenSize")
 , surface_data(2, 1, 800000)
 , screen(List("Position").Get(), shapes::Screen(), screen_prog)
{
    surface_data.light_projection = CamMatrixf::Perspective(-1, 1,-1, 1, 18.0, 22.0);


    Texture::Active(ColorMapTexUnit());
    color_map.Bind(Texture::Target::Rectangle);
    UniformSampler(screen_prog, "ColorMap").Set(ColorMapTexUnit());

    Texture::Active(LightMapTexUnit());
    light_map.Bind(Texture::Target::Rectangle);
    UniformSampler(screen_prog, "LightMap").Set(LightMapTexUnit());

    screen.Use();
}

void SurfaceExample::Reshape(GLuint width, GLuint height)
{
    surface_data.viewport_width = width;
    surface_data.viewport_height = height;
    gl.Viewport(width, height);

    screen_size.Set(width, height);

    surface_data.camera_projection = CamMatrixf::PerspectiveX(
        Degrees(75),
        double(width)/height,
        1, 80
    );
}

void SurfaceExample::Render(ExampleClock& clock)
{
    double time = clock.Now().Seconds();

    surface_data.light = CamMatrixf::Orbiting(
        Vec3f(),
        20.0f,
        FullCircles(time / 90.0)-RightAngles(1),
        Degrees(-CosineWave(time / 37.0) * 10)
    );
    surface_data.light_position = surface_data.light.Position();

    surface_data.camera = CamMatrixf::Orbiting(
        Vec3f(),
        3.0 - SineWave(time / 14.0),
        FullCircles(time / 60),
        Degrees(SineWave(time / 17.0) * 10)
    );
    surface_data.camera_position = surface_data.camera.Position();


    GLuint p = surface_data.plane_to_draw[0].Pop();
    for(GLuint w=1; w!=surface_data.workers; ++w)
    {
        GLuint np = surface_data.plane_to_draw[w].Pop();
        assert(np == p);
    }
    polygonizer_common.UpdateMetaballs(*this, clock.Interval().Seconds());

    if(surface_data.planes > 1)
    {
        GLuint np = (p+1)%surface_data.planes;
        for(GLuint w=0; w!=surface_data.workers; ++w)
        {
            surface_data.plane_to_poly[w].Push(np);
        }
    }

    depth_map_needed.Push(p);
    light_map_needed.Push(p);

    depth_map_ready.Pop();
    color_map_needed.Push(p);

    Vec4f tmp_light_pos((
        surface_data.camera_projection*
        surface_data.camera*
        Vec4f(surface_data.light_position, 1.0)
    ));

    surface_data.ndc_light_pos = tmp_light_pos.xyz()/tmp_light_pos.w();
    ndc_light_pos.Set(surface_data.ndc_light_pos);

    color_map_ready.Pop();
    light_map_ready.Pop();

    screen.Draw();

    if(surface_data.planes <= 0)
    {
        for(GLuint w=0; w!=surface_data.workers; ++w)
        {
            surface_data.plane_to_poly[w].Push(0);
        }
    }
}

void setupExample(ExampleParams& params)
{
    if(params.max_threads>0)
    {
/*
        if(params.num_gpus>=8)
            params.num_threads = 8;
        else if(params.num_gpus>=4)
            params.num_threads = 4;
        else if(params.num_gpus>=2)
            params.num_threads = 2;
        else params.num_threads = 1;
*/
        params.num_threads = 1;

        params.num_threads++; // depth map renderer
        params.num_threads++; // color map renderer
        params.num_threads++; // ray map renderer
    }
    else throw std::runtime_error("This example requires multi-threading");
}

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& example,
    unsigned thread_id,
    const ExampleParams& params
)
{
    if(thread_id < params.num_threads - 3)
    {
        return std::unique_ptr<ExampleThread>(
            new SurfacePolygonizer(
                dynamic_cast<SurfaceExample&>(example),
                thread_id
            )
        );
    }
    else if(thread_id < params.num_threads - 2)
    {
        return std::unique_ptr<ExampleThread>(
            new SurfaceDepthMapRenderer(
                dynamic_cast<SurfaceExample&>(example)
            )
        );
    }
    else if(thread_id < params.num_threads - 1)
    {
        return std::unique_ptr<ExampleThread>(
            new SurfaceColorMapRenderer(
                dynamic_cast<SurfaceExample&>(example)
            )
        );
    }
    else if(thread_id < params.num_threads)
    {
        return std::unique_ptr<ExampleThread>(
            new SurfaceLightMapRenderer(
                dynamic_cast<SurfaceExample&>(example)
            )
        );
    }
    return std::unique_ptr<ExampleThread>();
}

std::unique_ptr<Example> makeExample(const ExampleParams& params)
{
    return std::unique_ptr<Example>(new SurfaceExample(params));
}

} // namespace oglplus
