oglplus/031_blob.cpp

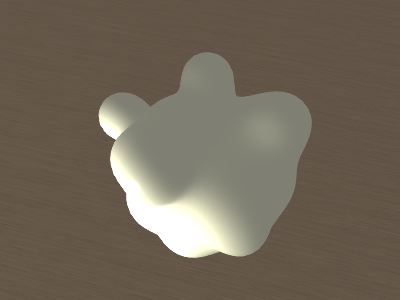

Shows implicit surface polygonization

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/bound/texture.hpp>

#include <oglplus/shapes/tetrahedrons.hpp>
#include <oglplus/shapes/plane.hpp>
#include <oglplus/shapes/wrapper.hpp>

#include <oglplus/images/brushed_metal.hpp>

#include <cmath>

#include "example.hpp"

namespace oglplus {

class BlobVertShader
 : public VertexShader
{
public:
    BlobVertShader(void)
     : VertexShader(
        ObjectDesc("Blob vertex shader"),
        "#version 330\n"
        "uniform vec3 GridOffset;"
        "uniform sampler1D Metaballs;"

        "in vec3 Position;"

        "out vec3 vertCenter;"
        "out float vertValue;"
        "flat out int vertInside;"

        "void main(void)"
        "{"
        "   vec3 vertPosition = Position + GridOffset;"

        "   float Sum = 0.0;"
        "   vertValue = 0.0;"
        "   vertCenter = vec3(0.0, 0.0, 0.0);"
        "   int Ball = 0, BallCount = textureSize(Metaballs, 0);"
        "   while(Ball != BallCount)"
        "   {"
        "       vec4 Metaball = texelFetch(Metaballs, Ball, 0);"
        "       vec3 Center = Metaball.xyz;"
        "       float Radius = Metaball.w;"
        "       vec3 Vect = vertPosition - Center;"
        "       float Tmp = (Radius*Radius)/dot(Vect, Vect);"
        "       vertValue += Tmp - 0.25;"
        "       float Mul = max(Tmp - 0.10, 0.0);"
        "       vertCenter += Mul * Center;"
        "       Sum += Mul;"
        "       ++Ball;"
        "   }"
        "   if(Sum > 0.0) vertCenter = vertCenter / Sum;"
        "   vertInside = (vertValue >= 0.0)?1:0;"
        "   gl_Position = vec4(vertPosition, 1.0);"
        "}"
    )
    { }
};

class BlobGeomShader
 : public GeometryShader
{
private:
    Texture _configurations;
public:
    BlobGeomShader(void)
     : GeometryShader(
        ObjectDesc("Blob geometry shader"),
        "#version 330\n"
        "layout(triangles_adjacency) in;"
        "layout(triangle_strip, max_vertices = 4) out;"

        "uniform usampler1D Configurations;"
        "uniform mat4 CameraMatrix;"
        "uniform vec3 CameraPosition, LightPosition;"

        "in vec3 vertCenter[];"
        "in float vertValue[];"
        "flat in int vertInside[];"

        "out vec3 geomNormal, geomLightDir, geomViewDir;"

        "float find_t(const uint i1, const uint i2)"
        "{"
        "   float d = vertValue[i2] - vertValue[i1];"
        "   if(d == 0.0) return 0.5;"
        "   else return -vertValue[i1]/d;"
        "}"

        "void make_vertex(const uint i1, const uint i2)"
        "{"
        "   float t = find_t(i1, i2);"
        "   gl_Position = mix("
        "       gl_in[i1].gl_Position,"
        "       gl_in[i2].gl_Position,"
        "       t"
        "   );"
        "   geomNormal = normalize("
        "       gl_Position.xyz - "
        "       mix(vertCenter[i1], vertCenter[i2], t)"
        "   );"
        "   geomLightDir = LightPosition - gl_Position.xyz;"
        "   geomViewDir = CameraPosition - gl_Position.xyz;"
        "   gl_Position = CameraMatrix * gl_Position;"
        "   EmitVertex();"
        "}"

        "void make_triangle(const uvec4 v1, const uvec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   EndPrimitive();"
        "}"

        "void make_quad(const uvec4 v1, const uvec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   make_vertex(v1.w, v2.w);"
        "   EndPrimitive();"
        "}"

        "void process_tetrahedron(int a, int b, int c, int d)"
        "{"
        "   ivec4 i = ivec4("
        "       vertInside[a],"
        "       vertInside[b],"
        "       vertInside[c],"
        "       vertInside[d] "
        "   );"
        "   int si = int(dot(i, ivec4(1, 1, 1, 1))) % 4;"
        "   if(si != 0)"
        "   {"
        "       int iv = int(dot(i, ivec4(16, 8, 4, 2)));"
        "       uvec4 v1 = texelFetch(Configurations, iv+0, 0);"
        "       uvec4 v2 = texelFetch(Configurations, iv+1, 0);"
        "       if(si % 2 == 0) make_quad(v1, v2);"
        "       else make_triangle(v1, v2);"
        "   }"
        "}"

        "void main(void)"
        "{"
        "   process_tetrahedron(0, 2, 4, 1);"
        "}"
    )
    {
        Texture::Active(0);
        const GLubyte a = 0x0, b = 0x2, c = 0x4, d = 0x1, x = 0xFF;
        const GLubyte  tex_data[] = {
            x, x, x, x,   x, x, x, x,
            a, c, b, x,   d, d, d, x,
            b, d, a, x,   c, c, c, x,
            b, b, a, a,   c, d, c, d,
            a, d, c, x,   b, b, b, x,
            a, a, c, c,   b, d, b, d,
            a, a, d, d,   c, b, c, b,
            a, a, a, x,   b, d, c, x,
            c, d, b, x,   a, a, a, x,
            c, c, b, b,   a, d, a, d,
            b, d, b, d,   c, c, a, a,
            b, b, b, x,   c, d, a, x,
            c, d, c, d,   a, a, b, b,
            c, c, c, x,   a, d, b, x,
            d, d, d, x,   a, b, c, x,
            x, x, x, x,   x, x, x, x
        };
        Context::Bound(Texture::Target::_1D, _configurations)
            .MinFilter(TextureMinFilter::Nearest)
            .MagFilter(TextureMagFilter::Nearest)
            .WrapS(TextureWrap::ClampToEdge)
            .Image1D(
                0,
                PixelDataInternalFormat::RGBA8UI,
                sizeof(tex_data),
                0,
                PixelDataFormat::RGBAInteger,
                PixelDataType::UnsignedByte,
                tex_data
            );
    }
};

class BlobFragShader
 : public FragmentShader
{
public:
    BlobFragShader(void)
     : FragmentShader(
        ObjectDesc("Blob fragment shader"),
        "#version 330\n"

        "in vec3 geomNormal, geomLightDir, geomViewDir;"

        "out vec4 fragColor;"

        "const vec3 LightColor = vec3(1.0, 1.0, 0.9);"

        "void main(void)"
        "{"
        "   vec3 Color = vec3(1.0, 1.0, 0.9);"
        "   vec3 Normal = normalize(geomNormal);"
        "   vec3 LightDir = normalize(geomLightDir);"
        "   vec3 ViewDir = normalize(geomViewDir);"

        "   vec3 LightRefl = reflect(-LightDir, Normal);"

        "   float Specular = pow(max(dot(LightRefl,ViewDir), 0.0), 64);"

        "   float LightHit = dot(Normal, LightDir);"

        "   float Diffuse = pow(1.05*max(LightHit-0.05, 0.0), 2.0);"

        "   float ViewLight = max(0.3-dot(ViewDir, LightDir), 0.0);"
        "   float Translucent = "
        "       ViewLight*"
        "       pow(0.4*exp(sin(-0.3-LightHit*(1.2+1.2*ViewLight))),3.0)*"
        "       0.2;"

        "   float Ambient = 0.5;"

        "   fragColor = vec4("
        "       Color * Ambient +"
        "       LightColor * Color * (Diffuse + Translucent) + "
        "       LightColor * Specular, "
        "       1.0"
        "   );"
        "}"
    )
    { }
};

class BlobProgramShaders
{
protected:
    BlobVertShader vs;
    BlobGeomShader gs;
    BlobFragShader fs;
};

class BlobProgram
 : public BlobProgramShaders
 , public Program
{
private:
    static Program make(const Shader& vs, const Shader& gs, const Shader& fs)
    {
        Program prog(ObjectDesc("Blob"));
        prog.AttachShader(vs);
        prog.AttachShader(gs);
        prog.AttachShader(fs);
        prog.Link().Use();
        return prog;
    }
    const Program& prog(void) const { return *this; }
public:
    ProgramUniform<Mat4f> camera_matrix;
    ProgramUniform<Vec3f> grid_offset, camera_position, light_position;
    ProgramUniformSampler metaballs;
    ProgramUniformSampler configurations;

    BlobProgram(void)
     : Program(make(vs, gs, fs))
     , camera_matrix(prog(), "CameraMatrix")
     , grid_offset(prog(), "GridOffset")
     , camera_position(prog(), "CameraPosition")
     , light_position(prog(), "LightPosition")
     , metaballs(prog(), "Metaballs")
     , configurations(prog(), "Configurations")
    {
        configurations = 0;
    }
};

class Grid
{
protected:
    shapes::Tetrahedrons make_grid;
    shapes::DrawingInstructions grid_instr;
    shapes::Tetrahedrons::IndexArray grid_indices;

    Context gl;

    // A vertex array object for the rendered shape
    VertexArray vao;

    // VBO for the grids's vertex positions and indices
    Buffer positions, indices;

public:
    Grid(const Program& prog, float quality)
     : make_grid(1.0, 12 + quality*24)
     , grid_instr(make_grid.Instructions())
     , grid_indices(make_grid.Indices())
    {
        // bind the VAO for the shape
        vao.Bind();

        std::vector<GLfloat> data;
        // bind the VBO for the grid vertex positions
        positions.Bind(Buffer::Target::Array);
        GLuint n_per_vertex = make_grid.Positions(data);
        // upload the data
        Buffer::Data(Buffer::Target::Array, data);
        // setup the vertex attribs array
        VertexArrayAttrib attr(prog, "Position");
        attr.Setup<GLfloat>(n_per_vertex);
        attr.Enable();

        // bind the VBO for the tetrahedron indices
        indices.Bind(Buffer::Target::ElementArray);
        // upload them
        Buffer::Data(Buffer::Target::ElementArray, grid_indices);
        grid_indices.clear();
    }

    void Use(void)
    {
        vao.Bind();
    }

    void Draw(void)
    {
        grid_instr.Draw(grid_indices);
    }
};

class MetalVertShader
 : public VertexShader
{
public:
    MetalVertShader(void)
     : VertexShader(
        ObjectDesc("Metal vertex shader"),
        "#version 330\n"
        "uniform mat4 CameraMatrix;"
        "uniform vec3 CameraPosition, LightPosition;"
        "in vec4 Position;"
        "in vec3 Normal, Tangent;"
        "in vec2 TexCoord;"

        "out vec3 vertNormal, vertTangent, vertBitangent;"
        "out vec3 vertLightDir, vertViewDir;"
        "out vec2 vertTexCoord;"
        "void main(void)"
        "{"
        "   gl_Position = Position - vec4(0.0, 1.0, 0.0, 0.0);"
        "   vertLightDir = LightPosition - gl_Position.xyz;"
        "   vertViewDir = CameraPosition - gl_Position.xyz;"
        "   vertNormal = Normal;"
        "   vertTangent = Tangent;"
        "   vertBitangent = cross(vertNormal, vertTangent);"
        "   vertTexCoord = TexCoord * 9.0;"
        "   gl_Position = CameraMatrix * gl_Position;"
        "}"
    )
    { }
};

class MetalFragShader
 : public FragmentShader
{
public:
    MetalFragShader(void)
     : FragmentShader(
        ObjectDesc("Metal fragment shader"),
        "#version 330\n"
        "const vec3 Color1 = vec3(0.7, 0.6, 0.5);"
        "const vec3 Color2 = vec3(0.9, 0.8, 0.7);"

        "uniform sampler2D MetalTex;"

        "in vec3 vertNormal, vertTangent, vertBitangent;"
        "in vec3 vertLightDir, vertViewDir;"
        "in vec2 vertTexCoord;"

        "out vec3 fragColor;"

        "void main(void)"
        "{"
        "   vec3 Sample = texture(MetalTex, vertTexCoord).rgb;"
        "   vec3 LightColor = vec3(1.0, 1.0, 0.9);"

        "   vec3 Normal = normalize("
        "       2.0*vertNormal + "
        "       (Sample.r - 0.5)*vertTangent + "
        "       (Sample.g - 0.5)*vertBitangent"
        "   );"

        "   vec3 LightRefl = reflect("
        "       -normalize(vertLightDir),"
        "       Normal"
        "   );"

        "   float Specular = pow(max(dot("
        "       normalize(LightRefl),"
        "       normalize(vertViewDir)"
        "   )+0.04, 0.0), 16+Sample.b*48)*pow(0.4+Sample.b*1.6, 4.0);"

        "   Normal = normalize(vertNormal*3.0 + Normal);"

        "   float Diffuse = pow(max(dot("
        "       normalize(Normal), "
        "       normalize(vertLightDir)"
        "   ), 0.0), 2.0);"

        "   float Ambient = 0.5;"

        "   vec3 Color = mix(Color1, Color2, Sample.b);"

        "   fragColor = "
        "       Color * Ambient +"
        "       LightColor * Color * Diffuse + "
        "       LightColor * Specular;"
        "}"
    )
    { }
};

class MetalProgram : public Program
{
private:
    static Program make(void)
    {
        Program prog(ObjectDesc("Metal program"));
        prog.AttachShader(MetalVertShader());
        prog.AttachShader(MetalFragShader());
        prog.Link().Use();
        return prog;
    }
    const Program& prog(void) const { return *this; }
public:
    ProgramUniform<Mat4f> camera_matrix;
    ProgramUniform<Vec3f> camera_position, light_position;
    ProgramUniformSampler metal_tex;

    MetalProgram(void)
     : Program(make())
     , camera_matrix(prog(), "CameraMatrix")
     , camera_position(prog(), "CameraPosition")
     , light_position(prog(), "LightPosition")
     , metal_tex(prog(), "MetalTex")
    { }
};

class Plate
 : public shapes::ShapeWrapper
{
private:
    static const GLchar** AttrNames(void)
    {
        static const GLchar* names[] = {"Position", "Normal", "Tangent", "TexCoord"};
        return names;
    }
    static std::size_t AttrCount(void)
    {
        return 4;
    }
public:
    Plate(const Program& program)
     : shapes::ShapeWrapper(
        AttrNames(),
        AttrCount(),
        shapes::Plane(Vec3f(9, 0, 0), Vec3f(0, 0,-9)),
        program
    )
    { }
};

class BlobExample : public Example
{
private:

    // wrapper around the current OpenGL context
    Context gl;

    BlobProgram blob_prog;
    MetalProgram metal_prog;

    Grid grid;
    Plate plane;

    GLuint width, height;

    std::vector<CubicBezierLoop<Vec4f, double> > ball_paths;

    // A 1D xyzw texture that contains metaball parameters
    Texture metaballs_tex;

    // A 2D metal texture
    Texture metal_tex;
public:
    BlobExample(const ExampleParams& params)
     : blob_prog()
     , metal_prog()
     , grid(blob_prog, params.quality)
     , plane(metal_prog)
    {
        std::srand(234);
        for(GLuint i=0; i!=24; ++i)
        {
            GLuint j = 0, n = 3+std::rand()%3;
            std::vector<Vec4f> points(n);
            GLfloat ball_size = 0.15*std::rand()/GLdouble(RAND_MAX) + 0.25;
            while(j != n)
            {
                points[j] = Vec4f(
                    1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                    1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                    1.2*std::rand()/GLdouble(RAND_MAX) - 0.6,
                    ball_size
                );
                ++j;
            }
            ball_paths.push_back(CubicBezierLoop<Vec4f, double>(points));
        }
        //
        Texture::Active(1);
        blob_prog.metaballs.Set(1);
        gl.Bound(Texture::Target::_1D, metaballs_tex)
            .MinFilter(TextureMinFilter::Nearest)
            .MagFilter(TextureMagFilter::Nearest)
            .WrapS(TextureWrap::ClampToEdge)
            .Image1D(
                0,
                PixelDataInternalFormat::RGBA32F,
                ball_paths.size(),
                0,
                PixelDataFormat::RGBA,
                PixelDataType::Float,
                nullptr
            );

        Texture::Active(2);
        metal_prog.metal_tex.Set(2);
        gl.Bound(Texture::Target::_2D, metal_tex)
            .MinFilter(TextureMinFilter::LinearMipmapLinear)
            .MagFilter(TextureMagFilter::Linear)
            .WrapS(TextureWrap::Repeat)
            .WrapT(TextureWrap::Repeat)
            .Image2D(
                images::BrushedMetalUByte(
                    512, 512,
                    5120,
                    -3, +3,
                    32, 128
                )
            ).GenerateMipmap();

        const Vec3f light_position(12.0, 1.0, 8.0);
        blob_prog.light_position.Set(light_position);
        metal_prog.light_position.Set(light_position);

        gl.ClearColor(0.8f, 0.7f, 0.6f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);

        gl.Enable(Capability::CullFace);
        gl.FrontFace(FaceOrientation::CW);
        gl.CullFace(Face::Back);
    }

    void Reshape(GLuint vp_width, GLuint vp_height)
    {
        width = vp_width;
        height = vp_height;
        gl.Viewport(width, height);
    }

    void UpdateMetaballs(double time)
    {
        std::size_t metaball_count = ball_paths.size(), k = 0;
        std::vector<GLfloat> metaballs(metaball_count*4);
        for(std::size_t ball=0; ball != metaball_count; ++ball)
        {
            Vec4f pos = ball_paths[ball].Position(time / 21.0);

            for(GLuint coord=0; coord != 4; ++coord)
                metaballs[k++] = pos.At(coord);
        }

        gl.Bound(Texture::Target::_1D, metaballs_tex)
            .Image1D(
                0,
                PixelDataInternalFormat::RGBA32F,
                metaball_count,
                0,
                PixelDataFormat::RGBA,
                PixelDataType::Float,
                metaballs.data()
            );
    }

    void RenderImage(double time)
    {
        gl.Clear().ColorBuffer().DepthBuffer();
        //

        Mat4f perspective = CamMatrixf::PerspectiveX(
            Degrees(48),
            double(width)/height,
            1, 100
        );

        auto camera = CamMatrixf::Orbiting(
            Vec3f(0, 0, 0),
            4.0 - SineWave(time / 14.0),
            FullCircles(time / 26.0),
            Degrees(45 + SineWave(time / 17.0) * 40)
        );
        Vec3f camera_position = camera.Position();

        metal_prog.Use();
        metal_prog.camera_position.Set(camera_position);
        metal_prog.camera_matrix.Set(perspective*camera);

        plane.Use();
        plane.Draw();

        blob_prog.Use();
        blob_prog.camera_position.Set(camera_position);
        blob_prog.camera_matrix.Set(perspective*camera);

        grid.Use();

        int side = 1;
        for(int z=-side; z!=side; ++z)
        for(int y=-side; y!=side; ++y)
        for(int x=-side; x!=side; ++x)
        {
            blob_prog.grid_offset.Set(x, y, z);
            grid.Draw();
        }

    }

    void Render(double time)
    {
        UpdateMetaballs(time);
        RenderImage(time);
    }

    bool Continue(double time)
    {
        return time < 90.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& params)
{
    return std::unique_ptr<Example>(new BlobExample(params));
}

} // namespace oglplus
