oglplus/030_cube_mapping.cpp

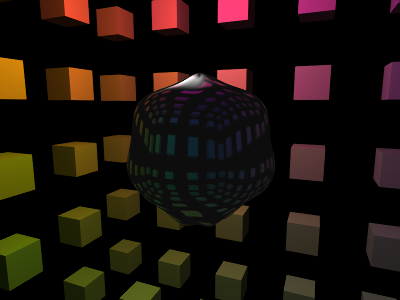

Shows how to do dynamic reflection using cube mapping

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <oglplus/opt/list_init.hpp>
#include <oglplus/shapes/sphere.hpp>
#include <oglplus/shapes/cube.hpp>
#include <oglplus/bound/texture.hpp>
#include <oglplus/bound/framebuffer.hpp>

#include <cmath>

#include "example.hpp"

namespace oglplus {

class CubeMapExample : public Example
{
private:
    // helper object building sphere vertex attributes
    shapes::Sphere make_sphere;
    // helper object encapsulating sphere drawing instructions
    shapes::DrawingInstructions sphere_instr;
    // indices pointing to sphere primitive elements
    shapes::Sphere::IndexArray sphere_indices;

    // helper object building cube vertex attributes
    shapes::Cube make_cube;
    // helper object encapsulating cube drawing instructions
    shapes::DrawingInstructions cube_instr;
    // indices pointing to cube primitive elements
    shapes::Cube::IndexArray cube_indices;

    // The offsets of the individual instances of the cube
    std::vector<Vec3f> cube_offsets;

    // Returns a vector of cube offsets
    static std::vector<Vec3f> MakeCubeOffsets(
        GLfloat distance,
        GLint cubes_per_side
    )
    {
        GLint instance_count =
            2 * cubes_per_side * cubes_per_side +
            2 * cubes_per_side * (cubes_per_side-2) +
            2 * (cubes_per_side-2) * (cubes_per_side-2);
        std::vector<Vec3f> offsets(instance_count);

        int cpf = cubes_per_side * cubes_per_side;
        int cpe = cubes_per_side - 2;
        int cpl = 2*cubes_per_side + 2*cpe;
        int cpi = cpl*cpe;

        for(GLint i=0; i!=instance_count; ++i)
        {
            int id = i;
            float omax = (cubes_per_side - 1)*0.5;
            float imax = (cpe-1)*0.5;
            float dx, dy, dz;
            if(id < cpf)
            {
                dx = -omax;
                dy = (id / cubes_per_side)-omax;
                dz = (id % cubes_per_side)-omax;
            }
            else if(id < cpf+cpi)
            {
                id -= cpf;
                dx = (id / cpl) - imax;
                id = id % cpl;
                if(id < cubes_per_side)
                {
                    dy = -omax;
                    dz = id-omax;
                }
                else if(id < cubes_per_side + cpe*2)
                {
                    id -= cubes_per_side;
                    dy = -imax + id / 2;
                    dz = (id %  2 == 1) ? omax : -omax;
                }
                else
                {
                    id -= cubes_per_side + cpe*2;
                    dy = omax;
                    dz = id-omax;
                }
            }
            else
            {
                id -= cpf+cpi;
                dx = omax;
                dy = (id / cubes_per_side) - omax;
                dz = (id % cubes_per_side) - omax;
            }
            offsets[i] = Vec3f(
                dx * distance,
                dy * distance,
                dz * distance
            );
        }
        return offsets;
    }

    // wrapper around the current OpenGL context
    Context gl;

    // Vertex shaders
    VertexShader sphere_vs, cube_vs, cmap_vs;

    // Geometry shader
    GeometryShader cmap_gs;

    // Fragment shaders
    FragmentShader sphere_fs, cube_fs;

    // Programs
    Program sphere_prog, cube_prog, cmap_prog;

    // Uniforms
    Uniform<Mat4f>
        sphere_projection_matrix, sphere_camera_matrix,
        cube_projection_matrix, cube_camera_matrix;
    Uniform<Vec4f> cmap_light_pos, sphere_light_pos, cube_light_pos;
    Uniform<Vec3f> cmap_offset, cube_offset;
    Uniform<GLfloat> sphere_time;

    // A vertex array object for the rendered sphere and cubes
    VertexArray sphere, cube;

    // VBOs for the objects' vertice positions, normals and st coords
    Buffer sphere_verts, sphere_normals, sphere_tangents, sphere_texcoords;
    Buffer cube_verts, cube_normals;


    // The resolution of the texture (side x side)
    GLuint tex_side;

    // The cube map color and depth textures
    Texture ctex, dtex;

    // The framebuffer used for rendering into the texture
    Framebuffer fbo;
    DefaultFramebuffer dfb;

    // Path of the light
    CubicBezierLoop<Vec3f, double> light_path;

    GLuint width, height;
public:
    CubeMapExample(void)
     : make_sphere(1.0, 72, 48)
     , sphere_instr(make_sphere.Instructions())
     , sphere_indices(make_sphere.Indices())
     , cube_instr(make_cube.Instructions())
     , cube_indices(make_cube.Indices())
     , cube_offsets(MakeCubeOffsets(2.5f, 6))
     , sphere_vs(ObjectDesc("Sphere Vertex"))
     , cube_vs(ObjectDesc("Cube Vertex"))
     , cmap_vs(ObjectDesc("Cube map Vertex"))
     , cmap_gs(ObjectDesc("Cube map Geometry"))
     , sphere_fs(ObjectDesc("Sphere Fragment"))
     , cube_fs(ObjectDesc("Cube Fragment"))
     , sphere_prog(ObjectDesc("Sphere"))
     , cube_prog(ObjectDesc("Cube"))
     , cmap_prog(ObjectDesc("Cube map"))
     , sphere_projection_matrix(sphere_prog)
     , sphere_camera_matrix(sphere_prog)
     , cube_projection_matrix(cube_prog)
     , cube_camera_matrix(cube_prog)
     , cmap_light_pos(cmap_prog)
     , sphere_light_pos(sphere_prog)
     , cube_light_pos(cube_prog)
     , cmap_offset(cmap_prog)
     , cube_offset(cube_prog)
     , sphere_time(sphere_prog)
     , tex_side(128)
     , light_path(
        ListOf<Vec3f>
            (Vec3f( 0.0f,  6.0f,  0.0f))
            (Vec3f(-3.0f, -4.0f,  3.5f))
            (Vec3f( 0.0f, -3.0f, -4.0f))
            (Vec3f( 3.5f, -4.0f,  3.0f))
        .Get()
    )
    {
        // Set the vertex shader source
        sphere_vs.Source(
            "#version 330\n"
            "uniform float Time;"
            "uniform mat4 CameraMatrix, ProjectionMatrix;"
            "uniform vec4 LightPos;"
            "in vec4 Position;"
            "in vec3 Normal, Tangent;"
            "in vec2 TexCoord;"
            "out vec3 vertNormal;"
            "out vec3 vertLight;"
            "out vec3 vertRefl;"
            "void main(void)"
            "{"
            "   float amps = 0.02, ampt = 0.05/(1.0+Time*0.1);"
            "   float pers = 6.0, pert = 3.0+Time*0.1;"
            "   float vels = 4.0, velt = 3.0;"
            "   float as = (TexCoord.s + Time/vels)*3.1415*2.0;"
            "   float at = (TexCoord.t + Time/velt)*3.1415*2.0;"

            "   vec3 Bitangent = cross(Normal, Tangent);"
            "   vec2 Sin = vec2(sin(as*pers), sin(at*pert));"
            "   vec2 Cos = vec2(cos(as*pers), cos(at*pert));"

            "   vertNormal = normalize("
            "       Normal - Tangent * cos(as*pers)*amps*5.0+"
            "       Normal - Bitangent* cos(at*pert)*ampt*5.0 "
            "   );"
            "   gl_Position = vec4("
            "       Position.xyz + Normal * ("
            "           amps * sin(as*pers)+"
            "           ampt * sin(at*pert) "
            "       ), 1.0"
            "   );"
            "   vertLight = LightPos.xyz - gl_Position.xyz;"
            "   vertRefl = reflect("
            "           -vec3("
            "               CameraMatrix[0][2],"
            "               CameraMatrix[1][2],"
            "               CameraMatrix[2][2] "
            "           ),"
            "           normalize(vertNormal)"
            "   );"
            "   gl_Position ="
            "       ProjectionMatrix *"
            "       CameraMatrix *"
            "       gl_Position;"
            "}"
        );

        // set the fragment shader source
        sphere_fs.Source(
            "#version 330\n"
            "uniform mat4 CameraMatrix;"
            "uniform samplerCube CubeTex;"
            "in vec3 vertNormal;"
            "in vec3 vertLight;"
            "in vec3 vertRefl;"
            "out vec4 fragColor;"
            "void main(void)"
            "{"
            "   float l = length(vertLight);"
            "   float d = l != 0? dot("
            "       normalize(vertNormal),"
            "       normalize(vertLight)"
            "   ) / l : 0.0;"
            "   float e = pow(dot("
            "       normalize(vertRefl),"
            "       normalize(vertLight)"
            "   ), 32.0);"
            "   vec3 color = texture("
            "       CubeTex,"
            "       normalize(vertRefl)"
            "   ).rgb;"
            "   fragColor = vec4("
            "       (0.3  + max(d,0.0)*0.5) * color +"
            "       (0.05 + max(e,0.0))*vec3(1.0, 1.0, 1.0),"
            "       1.0"
            "   );"
            "}"
        );
        // attach the shaders to the program
        sphere_prog.AttachShader(sphere_vs);
        sphere_prog.AttachShader(sphere_fs);
        // compile, link and use it
        sphere_prog.Build();
        sphere_prog.Use();

        sphere_projection_matrix.BindTo("ProjectionMatrix");
        sphere_camera_matrix.BindTo("CameraMatrix");
        sphere_light_pos.BindTo("LightPos");
        sphere_time.BindTo("Time");

        // bind the VAO for the sphere
        sphere.Bind();

        // bind the VBO for the sphere vertices
        sphere_verts.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_sphere.Positions(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(sphere_prog, "Position");
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }

        // bind the VBO for the sphere normals
        sphere_normals.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_sphere.Normals(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(sphere_prog, "Normal");
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }

        // bind the VBO for the sphere tangents
        sphere_tangents.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_sphere.Tangents(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(sphere_prog, "Tangent");
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }

        // bind the VBO for the sphere st coords
        sphere_texcoords.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_sphere.TexCoordinates(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(sphere_prog, "TexCoord");
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }

        // Set the vertex shader source
        cube_vs.Source(
            "#version 330\n"
            "uniform mat4 ProjectionMatrix, CameraMatrix;"
            "uniform vec4 LightPos;"
            "uniform vec3 Offset;"
            "in vec4 Position;"
            "in vec3 Normal;"
            "out vec3 vertColor;"
            "out vec3 vertNormal;"
            "out vec3 vertLight;"
            "void main(void)"
            "{"
            "   gl_Position = vec4(Position.xyz+Offset, 1.0);"
            "   vertColor = normalize("
            "       vec3(1.0, 1.0, 1.0) -"
            "       normalize(Normal + Offset)"
            "   );"
            "   vertNormal = Normal;"
            "   vertLight = LightPos.xyz - gl_Position.xyz;"
            "   gl_Position = "
            "       ProjectionMatrix *"
            "       CameraMatrix *"
            "       gl_Position;"
            "}"
        );

        // set the fragment shader source
        cube_fs.Source(
            "#version 330\n"
            "in vec3 vertColor;"
            "in vec3 vertNormal;"
            "in vec3 vertLight;"
            "out vec4 fragColor;"
            "void main(void)"
            "{"
            "   float l = length(vertLight);"
            "   float d = l != 0? dot("
            "       normalize(vertNormal), "
            "       normalize(vertLight)"
            "   ) / l : 0.0;"
            "   float i = 0.1 + 4.2*max(d, 0.0);"
            "   fragColor = vec4(vertColor*i, 1.0);"
            "}"
        );

        // attach the shaders to the program
        cube_prog.AttachShader(cube_vs);
        cube_prog.AttachShader(cube_fs);
        // compile, link and use it
        cube_prog.Build();
        cube_prog.Use();

        cube_projection_matrix.BindTo("ProjectionMatrix");
        cube_camera_matrix.BindTo("CameraMatrix");
        cube_light_pos.BindTo("LightPos");
        cube_offset.BindTo("Offset");

        // Set the vertex shader source
        cmap_vs.Source(
            "#version 330\n"
            "uniform vec4 LightPos;"
            "uniform vec3 Offset;"
            "in vec4 Position;"
            "in vec3 Normal;"
            "out vec3 tempColor;"
            "out vec3 tempNormal;"
            "out vec3 tempLight;"
            "void main(void)"
            "{"
            "   gl_Position = vec4(Position.xyz+Offset, 1.0);"
            "   tempColor = normalize("
            "       vec3(1.0, 1.0, 1.0) -"
            "       normalize(Normal + Offset)"
            "   );"
            "   tempNormal = Normal;"
            "   tempLight = LightPos.xyz - gl_Position.xyz;"
            "}"
        );

        // Set the geometry shader source
        cmap_gs.Source(
            "#version 330\n"
            "layout(triangles) in;"
            "layout(triangle_strip, max_vertices = 18) out;"
            "uniform mat4 ProjectionMatrix;"

            "const mat4 CubeFaceMatrix[6] = mat4[6]("
            "   mat4("
            "        0.0,  0.0, -1.0,  0.0,"
            "        0.0, -1.0,  0.0,  0.0,"
            "       -1.0,  0.0,  0.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   ), mat4("
            "        0.0,  0.0,  1.0,  0.0,"
            "        0.0, -1.0,  0.0,  0.0,"
            "        1.0,  0.0,  0.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   ), mat4("
            "        1.0,  0.0,  0.0,  0.0,"
            "        0.0,  0.0, -1.0,  0.0,"
            "        0.0,  1.0,  0.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   ), mat4("
            "        1.0,  0.0,  0.0,  0.0,"
            "        0.0,  0.0,  1.0,  0.0,"
            "        0.0, -1.0,  0.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   ), mat4("
            "        1.0,  0.0,  0.0,  0.0,"
            "        0.0, -1.0,  0.0,  0.0,"
            "        0.0,  0.0, -1.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   ), mat4("
            "       -1.0,  0.0,  0.0,  0.0,"
            "        0.0, -1.0,  0.0,  0.0,"
            "        0.0,  0.0,  1.0,  0.0,"
            "        0.0,  0.0,  0.0,  1.0 "
            "   )"
            ");"

            "in vec3 tempColor[];"
            "in vec3 tempNormal[];"
            "in vec3 tempLight[];"
            "out vec3 vertColor;"
            "out vec3 vertNormal;"
            "out vec3 vertLight;"
            "void main(void)"
            "{"
            "   for(gl_Layer=0; gl_Layer!=6; ++gl_Layer)"
            "   {"
            "       for(int i=0; i!=3; ++i)"
            "       {"
            "           gl_Position = "
            "               ProjectionMatrix *"
            "               CubeFaceMatrix[gl_Layer]*"
            "               gl_in[i].gl_Position;"
            "           vertColor = tempColor[i];"
            "           vertNormal = tempNormal[i];"
            "           vertLight = tempLight[i];"
            "           EmitVertex();"
            "       }"
            "       EndPrimitive();"
            "   }"
            "}"
        );

        // attach the shaders to the program
        cmap_prog.AttachShader(cmap_vs);
        cmap_prog.AttachShader(cmap_gs);
        cmap_prog.AttachShader(cube_fs);
        // compile, link and use it
        cmap_prog.Build();
        cmap_prog.Use();

        cmap_light_pos.BindTo("LightPos");
        cmap_offset.BindTo("Offset");

        Uniform<Mat4f>(cmap_prog, "ProjectionMatrix").Set(
            CamMatrixf::PerspectiveX(Degrees(90), 1.0, 1, 20)
        );

        // bind the VAO for the cube
        cube.Bind();

        // bind the VBO for the cube vertices
        cube_verts.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_cube.Positions(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(
                VertexArrayAttrib::GetCommonLocation(
                    MakeGroup(cube_prog, cmap_prog),
                    "Position"
                )
            );
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }

        // bind the VBO for the cube normals
        cube_normals.Bind(Buffer::Target::Array);
        {
            std::vector<GLfloat> data;
            GLuint n_per_vertex = make_cube.Normals(data);
            // upload the data
            Buffer::Data(Buffer::Target::Array, data);
            // setup the vertex attribs array for the vertices
            VertexArrayAttrib attr(
                VertexArrayAttrib::GetCommonLocation(
                    MakeGroup(cube_prog, cmap_prog),
                    "Normal"
                )
            );
            attr.Setup<GLfloat>(n_per_vertex);
            attr.Enable();
        }


        Texture::Active(1);
        gl.Bound(Texture::Target::CubeMap, dtex)
            .MinFilter(TextureMinFilter::Nearest)
            .MagFilter(TextureMagFilter::Nearest)
            .WrapS(TextureWrap::ClampToEdge)
            .WrapT(TextureWrap::ClampToEdge)
            .WrapR(TextureWrap::ClampToEdge);

        for(int i=0; i!=6; ++i)
        {
            Texture::Image2D(
                Texture::CubeMapFace(i),
                0,
                PixelDataInternalFormat::DepthComponent,
                tex_side, tex_side,
                0,
                PixelDataFormat::DepthComponent,
                PixelDataType::Float,
                nullptr
            );
        }

        Texture::Active(0);
        gl.Bound(Texture::Target::CubeMap, ctex)
            .MinFilter(TextureMinFilter::Linear)
            .MagFilter(TextureMagFilter::Linear)
            .WrapS(TextureWrap::ClampToEdge)
            .WrapT(TextureWrap::ClampToEdge)
            .WrapR(TextureWrap::ClampToEdge);

        for(int i=0; i!=6; ++i)
        {
            Texture::Image2D(
                Texture::CubeMapFace(i),
                0,
                PixelDataInternalFormat::RGB,
                tex_side, tex_side,
                0,
                PixelDataFormat::RGB,
                PixelDataType::UnsignedByte,
                nullptr
            );
        }
        sphere_prog.Use();
        UniformSampler(sphere_prog, "CubeTex").Set(0);

        gl.Bound(Framebuffer::Target::Draw, fbo)
            .AttachTexture(FramebufferAttachment::Color, ctex, 0)
            .AttachTexture(FramebufferAttachment::Depth, dtex, 0);

        gl.Enable(Capability::DepthTest);
        gl.Enable(Capability::CullFace);
        //gl.Enable(Capability::TextureCubeMapSeamless);
        gl.CullFace(Face::Back);
    }

    void Reshape(GLuint vp_width, GLuint vp_height)
    {
        width = vp_width;
        height = vp_height;
    }

    void Render(double time)
    {
        // Calculate the light position on the path
        Vec4f lightPos = Vec4f(light_path.Position(time / 10.0), 1.0f);

        // First we are going to render the cubes into the cube map
        gl.FrontFace(make_cube.FaceWinding());
        cube.Bind();

        // Bind the off-screen FBO
        fbo.Bind(Framebuffer::Target::Draw);
        // Set the viewport
        gl.Viewport(tex_side, tex_side);
        // Clear it
        gl.ClearColor(0.0f, 0.0f, 0.0f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Clear().ColorBuffer().DepthBuffer();

        // Use the cube map rendering program
        cmap_prog.Use();
        cmap_light_pos.Set(lightPos);
        {
            auto b=cube_offsets.begin(), e = cube_offsets.end();
            for(auto i=b; i!=e; ++i)
            {
                cmap_offset.Set(*i);
                cube_instr.Draw(cube_indices);
            }
        }

        // Now we're going to draw into the default framebuffer
        dfb.Bind(Framebuffer::Target::Draw);

        // Set the viewport and perspective matrix
        gl.Viewport(width, height);
        auto persp = CamMatrixf::PerspectiveX(
            Degrees(70),
            double(width)/height,
            1, 20
        );
        // clear it
        gl.ClearColor(0.0f, 0.0f, 0.0f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Clear().ColorBuffer().DepthBuffer();
        //
        auto cameraMatrix = CamMatrixf::Orbiting(
            Vec3f(),
            4.0,
            FullCircles(time / 16.0),
            Degrees(SineWave(time / 20.0) * 30)
        );

        cube_prog.Use();
        cube_projection_matrix.Set(persp);
        cube_camera_matrix.Set(cameraMatrix);
        cube_light_pos.Set(lightPos);
        {
            auto b=cube_offsets.begin(), e = cube_offsets.end();
            for(auto i=b; i!=e; ++i)
            {
                cube_offset.Set(*i);
                cube_instr.Draw(cube_indices);
            }
        }

        sphere_prog.Use();
        sphere_projection_matrix.Set(persp);
        sphere_camera_matrix.Set(cameraMatrix);
        sphere_light_pos.Set(lightPos);
        sphere_time.Set(time);

        gl.FrontFace(make_sphere.FaceWinding());
        sphere.Bind();
        sphere_instr.Draw(sphere_indices);
    }

    bool Continue(double time)
    {
        return time < 60.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
    return std::unique_ptr<Example>(new CubeMapExample);
}

} // namespace oglplus
