oglplus/029_waves.cpp

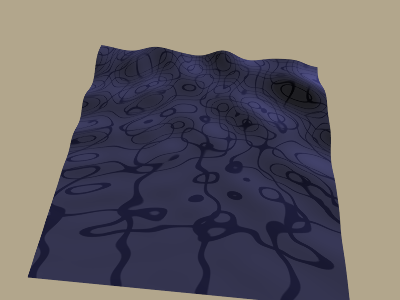

Shows implicit surface polygonization

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/bound/texture.hpp>

#include <oglplus/shapes/tetrahedrons.hpp>

#include <oglplus/images/squares.hpp>

#include <cmath>

#include "example.hpp"

namespace oglplus {

class LiquidVertShader
 : public VertexShader
{
public:
    LiquidVertShader(void)
     : VertexShader(
        ObjectDesc("Liquid vertex shader"),
        StrCRef("#version 330\n"
        "uniform vec3 GridOffset;"
        "uniform float Time;"

        "in vec4 Position;"

        "out vec3 vertNormal;"
        "out float vertValue;"
        "flat out int vertSign;"
        "const vec4 Source[4] = vec4[4]("
        "   vec4(-3.3, 0.1, 1.9, 0.21),"
        "   vec4(-3.9, 0.2,-2.1, 0.15),"
        "   vec4(-3.3, 0.2, 3.9, 0.17),"
        "   vec4(-2.6, 0.3,-3.9, 0.11) "
        ");"

        "void main(void)"
        "{"
        "   gl_Position = Position + vec4(GridOffset, 0.0);"
        "   vertValue = -gl_Position.y;"
        "   vertNormal = vec3(0.0, 1.0, 0.0);"
        "   for(int s=0; s!=4; ++s)"
        "   {"
        "       float x = gl_Position.x - Source[s].x;"
        "       float z = gl_Position.z - Source[s].z;"

        "       float a = Source[s].y;"
        "       float w = Source[s].w*8.0;"
        "       float r = x*x + z*z;"
        "       float t = r + s - (Time*1.9 - 0.2*s);"
        "       float g = w * t;"
        "       float d = a*exp((-r-1.0)*0.17)*(w*cos(g)-sin(g));"

        "       vertValue += sin(g)*exp((-r-1.0)*0.17)*a;"
        "       vertNormal += vec3(x*d, 0.0, z*d);"
        "   }"
        "   vertSign = vertValue < 0.0 ? 0 : 1;"
        "}")
    )
    { }
};

class LiquidGeomShader
 : public GeometryShader
{
private:
    Texture _configurations;
public:
    LiquidGeomShader(void)
     : GeometryShader(
        ObjectDesc("Liquid geometry shader"),
        StrCRef("#version 330\n"
        "layout(triangles_adjacency) in;"
        "layout(triangle_strip, max_vertices = 4) out;"

        "uniform isampler1D Configurations;"
        "uniform mat4 CameraMatrix;"
        "uniform vec3 CameraPosition, LightPosition;"

        "in vec3 vertNormal[];"
        "in float vertValue[];"
        "flat in int vertSign[];"

        "out vec3 geomNormal, geomLightDir, geomViewDir;"

        "void make_vertex(int i1, int i2)"
        "{"
        "   float t = vertValue[i1]/(vertValue[i1] - vertValue[i2]);"
        "   gl_Position = mix("
        "       gl_in[i1].gl_Position,"
        "       gl_in[i2].gl_Position,"
        "       t"
        "   );"
        "   geomNormal = mix("
        "       vertNormal[i1],"
        "       vertNormal[i2],"
        "       t"
        "   );"
        "   geomLightDir = LightPosition - gl_Position.xyz;"
        "   geomViewDir = CameraPosition - gl_Position.xyz;"
        "   gl_Position = CameraMatrix * gl_Position;"
        "   EmitVertex();"
        "}"

        "void make_triangle(const ivec4 v1, const ivec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   EndPrimitive();"
        "}"

        "void make_quad(const ivec4 v1, const ivec4 v2)"
        "{"
        "   make_vertex(v1.x, v2.x);"
        "   make_vertex(v1.y, v2.y);"
        "   make_vertex(v1.z, v2.z);"
        "   make_vertex(v1.w, v2.w);"
        "   EndPrimitive();"
        "}"

        "void process_tetrahedron(int a, int b, int c, int d)"
        "{"
        "   ivec4 i = ivec4(vertSign[a],vertSign[b],vertSign[c],vertSign[d]);"
        "   int si = int(dot(i, ivec4(1, 1, 1, 1))) % 4;"
        "   if(si != 0)"
        "   {"
        "       int iv = int(dot(i, ivec4(16, 8, 4, 2)));"
        "       ivec4 v1 = texelFetch(Configurations, iv+0, 0);"
        "       ivec4 v2 = texelFetch(Configurations, iv+1, 0);"
        "       if(si % 2 == 0) make_quad(v1, v2);"
        "       else make_triangle(v1, v2);"
        "   }"
        "}"

        "void main(void)"
        "{"
        "   process_tetrahedron(0, 2, 4, 1);"
        "}")
    )
    {
        Texture::Active(0);
        {
            const GLubyte a = 0x0, b = 0x2, c = 0x4, d = 0x1, x = 0xFF;
            const GLubyte  tex_data[] = {
                x, x, x, x,   x, x, x, x,
                a, c, b, x,   d, d, d, x,
                b, d, a, x,   c, c, c, x,
                b, b, a, a,   c, d, c, d,
                a, d, c, x,   b, b, b, x,
                a, a, c, c,   b, d, b, d,
                a, a, d, d,   c, b, c, b,
                a, a, a, x,   b, d, c, x,
                c, d, b, x,   a, a, a, x,
                c, c, b, b,   a, d, a, d,
                b, d, b, d,   c, c, a, a,
                b, b, b, x,   c, d, a, x,
                c, d, c, d,   a, a, b, b,
                c, c, c, x,   a, d, b, x,
                d, d, d, x,   a, b, c, x,
                x, x, x, x,   x, x, x, x
            };
            oglplus::Context::Bound(Texture::Target::_1D, _configurations)
                .Image1D(
                    0,
                    PixelDataInternalFormat::RGBA8UI,
                    sizeof(tex_data),
                    0,
                    PixelDataFormat::RGBAInteger,
                    PixelDataType::UnsignedByte,
                    tex_data
                )
                .MinFilter(TextureMinFilter::Nearest)
                .MagFilter(TextureMagFilter::Nearest)
                .WrapS(TextureWrap::ClampToEdge);
        }
    }
};

class LiquidFragShader
 : public FragmentShader
{
public:
    LiquidFragShader(void)
     : FragmentShader(
        ObjectDesc("Liquid fragment shader"),
        StrCRef("#version 330\n"

        "uniform samplerCube EnvMap;"

        "in vec3 geomNormal, geomLightDir, geomViewDir;"

        "out vec3 fragColor;"

        "void main(void)"
        "{"
        "   vec3 Normal = normalize(geomNormal);"
        "   vec3 LightDir = normalize(geomLightDir);"
        "   vec3 ViewDir = normalize(geomViewDir);"

        "   float LightRefl = dot(reflect(-LightDir, Normal), ViewDir);"
        "   float LightHit = dot(Normal, LightDir);"

        "   float Specular = pow(clamp(LightRefl+0.1, 0.0, 1.0), 32);"

        "   float Diffuse1 = pow(max(LightHit*0.6+0.4, 0.0), 2.0);"
        "   float Diffuse2 = sqrt(max(LightHit+0.2, 0.0));"
        "   float Diffuse = Diffuse1 * 0.8 + Diffuse2 * 0.2;"

        "   float ViewLight = max(0.3-dot(ViewDir, LightDir), 0.0);"

        "   vec3 Environ = texture(EnvMap, reflect(-ViewDir, Normal)).rgb;"
        "   fragColor = "
        "       Environ * 0.1 +"
        "       vec3(0.4, 0.4, 0.8) * Diffuse+"
        "       vec3(0.2, 0.2, 0.3) * Specular;"
        "}")
    )
    { }
};

struct LiquidProgramShaders
{
    LiquidVertShader vertex;
    LiquidGeomShader geometry;
    LiquidFragShader fragment;
};

class LiquidProgram
 : public LiquidProgramShaders
 , public Program
{
private:
    const LiquidProgramShaders& shaders(void) const { return *this; }
    static Program make(const LiquidProgramShaders& shaders)
    {
        Program prog;
        prog.AttachShader(shaders.vertex);
        prog.AttachShader(shaders.geometry);
        prog.AttachShader(shaders.fragment);
        prog.Link().Use();
        return prog;
    }
    const Program& prog(void) const { return *this; }
public:
    ProgramUniform<Mat4f> camera_matrix;
    ProgramUniform<Vec3f> grid_offset, camera_position, light_position;
    ProgramUniform<GLfloat> time;
    ProgramUniformSampler configurations;

    LiquidProgram(void)
     : Program(make(shaders()))
     , camera_matrix(prog(), "CameraMatrix")
     , grid_offset(prog(), "GridOffset")
     , camera_position(prog(), "CameraPosition")
     , light_position(prog(), "LightPosition")
     , time(prog(), "Time")
     , configurations(prog(), "Configurations")
    {
        configurations = 0;
    }
};

class Grid
{
protected:
    shapes::Tetrahedrons make_grid;
    shapes::DrawingInstructions grid_instr;
    shapes::Tetrahedrons::IndexArray grid_indices;

    Context gl;

    // A vertex array object for the rendered shape
    VertexArray vao;

    // VBO for the grids's vertex positions
    Buffer positions, indices;

public:
    Grid(const Program& prog, float quality)
     : make_grid(1.0, 16 + quality*quality*64)
     , grid_instr(make_grid.Instructions())
     , grid_indices(make_grid.Indices())
    {
        // bind the VAO for the shape
        vao.Bind();

        std::vector<GLfloat> data;
        // bind the VBO for the positions
        positions.Bind(Buffer::Target::Array);
        GLuint n_per_vertex = make_grid.Positions(data);
        // upload the data
        Buffer::Data(Buffer::Target::Array, data);
        // setup the vertex attribs array
        VertexArrayAttrib attr(prog, "Position");
        attr.Setup<GLfloat>(n_per_vertex);
        attr.Enable();

        // bind the VBO for the indices
        indices.Bind(Buffer::Target::ElementArray);
        // upload them
        Buffer::Data(Buffer::Target::ElementArray, grid_indices);
        // clear the indexs buffer
        grid_indices.clear();
    }

    void Use(void)
    {
        vao.Bind();
    }

    void Draw(void)
    {
        grid_instr.Draw(grid_indices);
    }
};

class LiquidExample : public Example
{
private:

    // wrapper around the current OpenGL context
    Context gl;

    LiquidProgram liquid_prog;

    Grid grid;

    Mat4f perspective;

    Texture env_map;

    const int grid_repeat;
public:
    LiquidExample(const ExampleParams& params)
     : liquid_prog()
     , grid(liquid_prog, params.quality)
     , grid_repeat(1 + params.quality*2)
    {
        Texture::Active(1);
        {
            auto image = images::Squares(512, 512, 0.9f, 8, 8);
            auto bound_tex = gl.Bound(Texture::Target::CubeMap, env_map);
            for(int i=0; i!=6; ++i)
                Texture::ImageCM(i, image);
            bound_tex.GenerateMipmap();
            bound_tex.MinFilter(TextureMinFilter::LinearMipmapLinear);
            bound_tex.MagFilter(TextureMagFilter::Linear);
            bound_tex.WrapS(TextureWrap::ClampToEdge);
            bound_tex.WrapT(TextureWrap::ClampToEdge);
            bound_tex.WrapR(TextureWrap::ClampToEdge);
            bound_tex.SwizzleG(TextureSwizzle::Red);
            bound_tex.SwizzleB(TextureSwizzle::Red);
        }
        ProgramUniformSampler(liquid_prog, "EnvMap").Set(1);

        const Vec3f light_position(12.0, 1.0, 8.0);
        liquid_prog.light_position.Set(light_position);

        gl.ClearColor(0.7f, 0.65f, 0.55f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);

        gl.Enable(Capability::CullFace);
        gl.FrontFace(FaceOrientation::CW);
        gl.CullFace(Face::Back);
    }

    void Reshape(GLuint width, GLuint height)
    {
        gl.Viewport(width, height);
        perspective = CamMatrixf::PerspectiveX(
            Degrees(65),
            double(width)/height,
            1, 100
        );
    }

    void Render(double time)
    {
        gl.Clear().ColorBuffer().DepthBuffer();
        //
        liquid_prog.time = time;


        auto camera = CamMatrixf::Orbiting(
            Vec3f(0, 0, 0),
            5.0 - SineWave(time / 31.0),
            FullCircles(time / 71.0),
            Degrees(55 + SineWave(time / 27.0) * 30)
        );
        Vec3f camera_position = camera.Position();

        liquid_prog.camera_position = camera_position;
        liquid_prog.camera_matrix = perspective*camera;

        for(int z=-grid_repeat; z!=grid_repeat; ++z)
        for(int x=-grid_repeat; x!=grid_repeat; ++x)
        {
            liquid_prog.grid_offset.Set(x, -0.5, z);
            grid.Draw();
        }

    }

    bool Continue(double time)
    {
        return time < 60.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& params)
{
    return std::unique_ptr<Example>(new LiquidExample(params));
}

} // namespace oglplus
