oglplus/029_surface.cpp

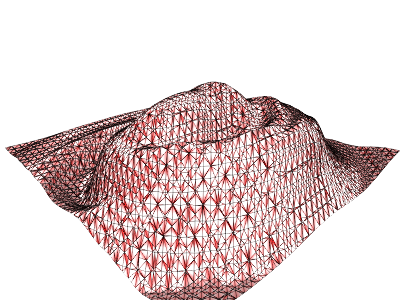

Shows implicit surface polygonization and single-pass wireframe

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/shapes/tetrahedrons.hpp>

#include "example.hpp"

namespace oglplus {

class SurfaceVertShader
 : public VertexShader
{
public:
    SurfaceVertShader(void)
     : VertexShader(
        ObjectDesc("Surface vertex shader"),
        "#version 330\n"
        "uniform vec3 GridOffset;"
        "uniform float Time;"

        "in vec4 Position;"

        "out vec3 vertNormal;"
        "out float vertValue;"
        "const vec4 Source[4] = vec4[4]("
        "   vec4(-0.2, 0.3, 0.1, 0.3),"
        "   vec4(-0.5, 3.1,-0.1, 0.1),"
        "   vec4( 0.2, 0.4,-0.4, 0.3),"
        "   vec4(-0.1, 0.2,-0.5, 0.7) "
        ");"

        "void main(void)"
        "{"
        "   gl_Position = Position + vec4(GridOffset, 0.0);"
        "   vertValue = -gl_Position.y;"
        "   vertNormal = vec3(0.0, 1.0, 0.0);"
        "   for(int s=0; s!=4; ++s)"
        "   {"
        "       float x = gl_Position.x - Source[s].x;"
        "       float z = gl_Position.z - Source[s].z;"

        "       float a = Source[s].y;"
        "       float w = Source[s].w*20.0;"
        "       float r = 0.7*x*x + 0.4*z*z;"
        "       float t = r + s - Time*(0.5 - 0.1*s);"
        "       float g = w * t;"
        "       float d = 2.0*a*exp(-r-1.0)*(w*cos(g)-sin(g));"

        "       vertValue += sin(g)*exp(-r-1.0)*a;"
        "       vertNormal += vec3(x*d, 0.0, z*d);"
        "   }"
        "}"
    )
    { }
};

class SurfaceGeomShader
 : public GeometryShader
{
public:
    SurfaceGeomShader(void)
     : GeometryShader(
        ObjectDesc("Surface geometry shader"),
        "#version 330\n"
        "layout(triangles_adjacency) in;"
        "layout(triangle_strip, max_vertices = 6) out;"

        "uniform mat4 CameraMatrix;"
        "uniform vec3 CameraPosition, LightPosition;"
        "uniform vec2 ViewportDimensions;"

        "in vec3 vertNormal[];"
        "in float vertValue[];"

        "noperspective out vec3 geomDist;"
        "out float geomSpecular, geomDiffuse, geomValue;"

        "void do_nothing(void){ }"

        "float find_t(int i1, int i2)"
        "{"
        "   return vertValue[i1]/(vertValue[i1] - vertValue[i2]);"
        "}"

        "vec4 make_position(int i1, int i2, float t)"
        "{"
        "   return mix(gl_in[i1].gl_Position,gl_in[i2].gl_Position,t);"
        "}"

        "void make_vertex("
        "   int i1, "
        "   int i2, "
        "   float t, "
        "   vec4 p0, "
        "   vec4 p1, "
        "   vec4 p2, "
        "   vec4 c0, "
        "   vec2 s0, "
        "   vec2 s1, "
        "   vec2 s2, "
        "   vec3 m"
        ")"
        "{"
        "   vec3 Normal = normalize(mix(vertNormal[i1], vertNormal[i2], t));"
        "   vec3 LightDir = normalize(LightPosition - p0.xyz);"
        "   vec3 ViewDir = normalize(CameraPosition - p0.xyz);"

        "   float LightRefl = dot(reflect(-LightDir, Normal), ViewDir);"
        "   float LightHit = dot(Normal, LightDir);"

        "   gl_Position = c0;"
        "   geomSpecular = pow(clamp(LightRefl+0.1, 0.0, 1.0), 32);"
        "   geomDiffuse = pow(max((LightHit*0.7+0.3), 0.0), 2.0);"
        "   geomValue = pow(dot(normalize(p1-p0), normalize(p2-p0)),2.0);"

        "   vec2 v0 = s2 - s1;"
        "   vec2 v1 = s2 - s0;"
        "   vec2 v2 = s1 - s0;"
        "   float a = abs(v1.x*v2.y - v1.y*v2.x);"
        "   float d = a / length(v0);"
        "   geomDist = m * vec3(d, d, d);"
        "   EmitVertex();"
        "}"

        "void make_triangle(int a1, int a2, int b1, int b2, int c1, int c2)"
        "{"
        "   float ta = find_t(a1, a2);"
        "   float tb = find_t(b1, b2);"
        "   float tc = find_t(c1, c2);"

        "   vec4 pa = make_position(a1, a2, ta);"
        "   vec4 pb = make_position(b1, b2, tb);"
        "   vec4 pc = make_position(c1, c2, tc);"

        "   vec4 ca = CameraMatrix*pa;"
        "   vec4 cb = CameraMatrix*pb;"
        "   vec4 cc = CameraMatrix*pc;"

        "   vec2 sa = ViewportDimensions * ca.xy / ca.w;"
        "   vec2 sb = ViewportDimensions * cb.xy / cb.w;"
        "   vec2 sc = ViewportDimensions * cc.xy / cc.w;"

        "   make_vertex(a1, a2, ta, pa, pb, pc, ca, sa, sb, sc, vec3(1,0,0));"
        "   make_vertex(b1, b2, tb, pb, pa, pc, cb, sb, sa, sc, vec3(0,1,0));"
        "   make_vertex(c1, c2, tc, pc, pa, pb, cc, sc, sa, sb, vec3(0,0,1));"
        "   EndPrimitive();"
        "}"

        "void make_quad(int a1,int a2,int b1,int b2,int c1,int c2,int d1,int d2)"
        "{"
        "   float ta = find_t(a1, a2);"
        "   float tb = find_t(b1, b2);"
        "   float tc = find_t(c1, c2);"
        "   float td = find_t(d1, d2);"

        "   vec4 pa = make_position(a1, a2, ta);"
        "   vec4 pb = make_position(b1, b2, tb);"
        "   vec4 pc = make_position(c1, c2, tc);"
        "   vec4 pd = make_position(d1, d2, td);"

        "   vec4 ca = CameraMatrix*pa;"
        "   vec4 cb = CameraMatrix*pb;"
        "   vec4 cc = CameraMatrix*pc;"
        "   vec4 cd = CameraMatrix*pd;"

        "   vec2 sa = ViewportDimensions * ca.xy / ca.w;"
        "   vec2 sb = ViewportDimensions * cb.xy / cb.w;"
        "   vec2 sc = ViewportDimensions * cc.xy / cc.w;"
        "   vec2 sd = ViewportDimensions * cd.xy / cd.w;"

        "   make_vertex(a1, a2, ta, pa, pb, pc, ca, sa, sb, sc, vec3(1,0,0));"
        "   make_vertex(b1, b2, tb, pb, pa, pc, cb, sb, sa, sc, vec3(0,1,0));"
        "   make_vertex(c1, c2, tc, pc, pa, pb, cc, sc, sa, sb, vec3(0,0,1));"
        "   EndPrimitive();"

        "   make_vertex(c1, c2, tc, pc, pb, pd, cc, sc, sb, sd, vec3(1,0,0));"
        "   make_vertex(b1, b2, tb, pb, pc, pd, cb, sb, sc, sd, vec3(0,1,0));"
        "   make_vertex(d1, d2, td, pd, pc, pb, cd, sd, sc, sb, vec3(0,0,1));"
        "   EndPrimitive();"

        "}"

        "void process_tetrahedron(int a, int b, int c, int d)"
        "{"
        "   if(vertValue[a] >= 0.0)"
        "   {"
        "       if(vertValue[b] >= 0.0)"
        "       {"
        "           if(vertValue[c] >= 0.0)"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   do_nothing();"
        "               else make_triangle(d,a, d,b, d,c);"
        "           }"
        "           else"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_triangle(c,a, c,d, c,b);"
        "               else make_quad(c,a, d,a, c,b, d,b);"
        "           }"
        "       }"
        "       else"
        "       {"
        "           if(vertValue[c] >= 0.0)"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_triangle(b,c, b,d, b,a);"
        "               else make_quad(b,c, d,c, b,a, d,a);"
        "           }"
        "           else"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_quad(c,a, c,d, b,a, b,d);"
        "               else make_triangle(c,a, d,a, b,a);"
        "           }"
        "       }"
        "   }"
        "   else"
        "   {"
        "       if(vertValue[b] >= 0.0)"
        "       {"
        "           if(vertValue[c] >= 0.0)"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_triangle(a,b, a,d, a,c);"
        "               else make_quad(a,c, a,b, d,c, d,b);"
        "           }"
        "           else"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_quad(a,b, a,d, c,b, c,d);"
        "               else make_triangle(a,b, d,b, c,b);"
        "           }"
        "       }"
        "       else"
        "       {"
        "           if(vertValue[c] >= 0.0)"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_quad(b,c, b,d, a,c, a,d);"
        "               else make_triangle(b,c, d,c, a,c);"
        "           }"
        "           else"
        "           {"
        "               if(vertValue[d] >= 0.0)"
        "                   make_triangle(a,d, c,d, b,d);"
        "               else do_nothing();"
        "           }"
        "       }"
        "   }"
        "}"

        "void main(void)"
        "{"
        "   process_tetrahedron(0, 2, 4, 1);"
        "}"
    )
    { }
};

class SurfaceFragShader
 : public FragmentShader
{
public:
    SurfaceFragShader(void)
     : FragmentShader(
        ObjectDesc("Surface fragment shader"),
        "#version 330\n"

        "noperspective in vec3 geomDist;"
        "in float geomSpecular, geomDiffuse, geomValue;"

        "out vec3 fragColor;"

        "void main(void)"
        "{"

        "   float MinDist = min(min(geomDist.x, geomDist.y), geomDist.z);"
        "   float EdgeAlpha = exp2(-pow(MinDist, 2.0));"

        "   float Ambient = 0.8;"

        "   vec3 Color = vec3("
        "       1.0-geomValue*(gl_FrontFacing?1:0),"
        "       1.0-geomValue*(gl_FrontFacing?0:1),"
        "       1.0-geomValue"
        "   );"
        "   vec3 Fill = Color * (Ambient + geomDiffuse + geomSpecular);"
        "   vec3 Line = vec3(0, 0, 0);"

        "   fragColor = mix(Fill, Line, EdgeAlpha);"
        "}"
    )
    { }
};

class SurfaceProgram : public Program
{
private:
    static Program make(void)
    {
        Program prog;
        prog.AttachShader(SurfaceVertShader());
        prog.AttachShader(SurfaceGeomShader());
        prog.AttachShader(SurfaceFragShader());
        prog.Link().Use();
        return prog;
    }
    const Program& prog(void) const { return *this; }
public:
    ProgramUniform<Mat4f> camera_matrix;
    ProgramUniform<Vec3f> grid_offset, camera_position, light_position;
    ProgramUniform<Vec2f> viewport_dimensions;
    ProgramUniform<GLfloat> time;

    SurfaceProgram(void)
     : Program(make())
     , camera_matrix(prog(), "CameraMatrix")
     , grid_offset(prog(), "GridOffset")
     , camera_position(prog(), "CameraPosition")
     , light_position(prog(), "LightPosition")
     , viewport_dimensions(prog(), "ViewportDimensions")
     , time(prog(), "Time")
    { }
};

class Grid
{
protected:
    shapes::Tetrahedrons make_grid;
    shapes::DrawingInstructions grid_instr;
    shapes::Tetrahedrons::IndexArray grid_indices;

    Context gl;

    // A vertex array object for the rendered shape
    VertexArray vao;

    // VBO for the grids's vertex positions
    Buffer positions, indices;

public:
    Grid(const Program& prog, float quality)
     : make_grid(1.0, 8 + quality*quality*8)
     , grid_instr(make_grid.Instructions(shapes::DrawMode::WithAdjacency()))
     , grid_indices(make_grid.Indices(shapes::DrawMode::WithAdjacency()))
    {
        // bind the VAO for the shape
        vao.Bind();

        std::vector<GLfloat> data;
        // bind the VBO for the positions
        positions.Bind(Buffer::Target::Array);
        GLuint n_per_vertex = make_grid.Positions(data);
        // upload the data
        Buffer::Data(Buffer::Target::Array, data);
        // setup the vertex attribs array
        VertexArrayAttrib attr(prog, "Position");
        attr.Setup<GLfloat>(n_per_vertex);
        attr.Enable();

        // bind the VBO for the indices
        indices.Bind(Buffer::Target::ElementArray);
        // upload them
        Buffer::Data(Buffer::Target::ElementArray, grid_indices);
        // clear the indexs buffer
        grid_indices.clear();
    }

    void Use(void)
    {
        vao.Bind();
    }

    void Draw(void)
    {
        grid_instr.Draw(grid_indices);
    }
};

class SurfaceExample : public Example
{
private:

    // wrapper around the current OpenGL context
    Context gl;

    SurfaceProgram liquid_prog;

    Grid grid;

    Mat4f perspective;

    const int grid_repeat;
public:
    SurfaceExample(const ExampleParams& params)
     : liquid_prog()
     , grid(liquid_prog, params.quality)
     , grid_repeat(1 + params.quality*2)
    {
        const Vec3f light_position(12.0, 1.0, 8.0);
        liquid_prog.light_position.Set(light_position);

        gl.ClearColor(1.0f, 1.0f, 1.0f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);
    }

    void Reshape(GLuint width, GLuint height)
    {
        gl.Viewport(width, height);
        perspective = CamMatrixf::PerspectiveX(
            Degrees(60),
            double(width)/height,
            1, 60
        );
        liquid_prog.viewport_dimensions.Set(Vec2f(width, height));
    }

    void Render(ExampleClock& clock)
    {
        gl.Clear().ColorBuffer().DepthBuffer();

        double time = clock.Now().Seconds();
        //
        liquid_prog.time.Set(time);

        double t = SineWave(time / 13.0);
        if(t+0.95 < 0.0) clock.Pace(0.05);
        else if(t+0.91 < 0.0) clock.Pace(0.10);
        else if(t+0.87 < 0.0) clock.Pace(0.15);
        else if(t+0.83 < 0.0) clock.Pace(0.20);
        else if(t+0.81 < 0.0) clock.Pace(0.50);
        else clock.Pace(1.0);


        auto camera = CamMatrixf::Orbiting(
            Vec3f(0, 0, 0),
            4.0 - SineWave(time / 14.0),
            FullCircles(time / 26.0),
            Degrees(55 + SineWave(time / 14.0) * 30)
        );
        Vec3f camera_position = camera.Position();

        liquid_prog.camera_position.Set(camera_position);
        liquid_prog.camera_matrix.Set(perspective*camera);

        for(int y=-1; y!=1; ++y)
        for(int z=-grid_repeat; z!=grid_repeat; ++z)
        for(int x=-grid_repeat; x!=grid_repeat; ++x)
        {
            liquid_prog.grid_offset.Set(x, y, z);
            grid.Draw();
        }

    }

    bool Continue(double time)
    {
        return time < 60.0;
    }

    double ScreenshotTime(void) const
    {
        return 10.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& params)
{
    return std::unique_ptr<Example>(new SurfaceExample(params));
}

} // namespace oglplus
