OGLplus (0.52.0) a C++ wrapper for OpenGL

oglplus/026_nv_path_rendering.cpp

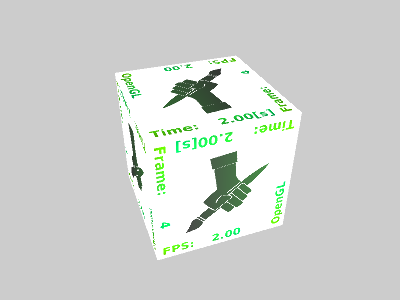

Shows how to use the NV_path_rendering wrapper


Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#define GL_MODELVIEW 0x1700
#define GL_PROJECTION 0x1701
#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <vector>
#include <sstream>
#include <iomanip>
#include "example.hpp"
#include "example_mt.hpp"
namespace oglplus {
class FBTexThread;
class FBTexExample : public Example
{
private:
friend class FBTexThread;
Context gl;
VertexShader vertex_shader;
Program prog;
Program make_prog(void)
{
Program result(ObjectDesc("Main"));
vertex_shader.Source(
"#version 330\n"
"uniform mat4 ProjectionMatrix, CameraMatrix, ModelMatrix;"
"in vec4 Position;"
"in vec3 Normal;"
"in vec2 TexCoord;"
"out vec3 vertNormal;"
"out vec3 vertLight;"
"out vec2 vertTexCoord;"
"uniform vec3 LightPos;"
"void main(void)"
"{"
" vertNormal = mat3(ModelMatrix)*Normal;"
" gl_Position = ModelMatrix * Position;"
" vertLight = LightPos-gl_Position.xyz;"
" vertTexCoord = TexCoord;"
" gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
"}"
).Compile();
result.AttachShader(vertex_shader);
FragmentShader fs(ObjectDesc("Main fragment"));
fs.Source(
"#version 330\n"
"uniform sampler2D TexUnit;"
"in vec3 vertNormal;"
"in vec3 vertLight;"
"in vec2 vertTexCoord;"
"out vec4 fragColor;"
"void main(void)"
"{"
" float d = dot(vertNormal, normalize(vertLight));"
" float i = 0.6 + max(d, 0.0);"
" fragColor = texture(TexUnit, vertTexCoord)*i;"
"}"
);
fs.Compile();
result.AttachShader(fs);
result.Link().Use();
return std::move(result);
}
// Handle for matrix uniforms
Uniform<Mat4f> projection_matrix, camera_matrix, model_matrix;
shapes::ShapeWrapper cube;
GLuint width, height;
Texture tex;
ExampleSyncQueue parent_ready;
ExampleSyncQueue* thread_ready;
public:
FBTexExample(void)
: gl()
, vertex_shader(ObjectDesc("Vertex"))
, prog(make_prog())
, projection_matrix(prog, "ProjectionMatrix")
, camera_matrix(prog, "CameraMatrix")
, model_matrix(prog, "ModelMatrix")
, cube(List("Position")("Normal")("TexCoord").Get(), shapes::Cube(), prog)
, width(800)
, height(600)
{
UniformSampler(prog, "TexUnit").Set(0);
Uniform<Vec3f>(prog, "LightPos").Set(40.0f, 40.0f, -80.0f);
Texture::Active(0);
tex.Bind(Texture::Target::_2D);
Use();
}
void SetProjection(void)
{
projection_matrix.Set(
Degrees(54),
double(width)/height,
1, 100
)
);
}
void Use(void)
{
gl.ClearDepth(1.0f);
gl.ClearColor(0.8f, 0.8f, 0.8f, 0.0f);
gl.CullFace(Face::Back);
dfb.Bind(Framebuffer::Target::Draw);
gl.Viewport(width, height);
prog.Use();
cube.Use();
SetProjection();
}
void Reshape(GLuint vp_width, GLuint vp_height)
{
width = vp_width;
height = vp_height;
gl.Viewport(width, height);
SetProjection();
}
void Render(double time)
{
gl.Clear().ColorBuffer().DepthBuffer();
camera_matrix.Set(
Vec3f(),
3.0,
Degrees(time * 35),
Degrees(SineWave(time / 20.0) * 60)
)
);
model_matrix.Set(ModelMatrixf::RotationX(FullCircles(time * 0.25)));
assert(thread_ready);
thread_ready->Wait();
cube.Draw();
parent_ready.Signal();
}
bool Continue(double time)
{
return time < 30.0;
}
double ScreenshotTime(void) const
{
return 2.0;
}
};
class FBTexThread
: public ExampleThread
{
private:
Context gl;
EXT_direct_state_access dsa;
NV_path_rendering npr;
PathNV shape;
PathArrayNV text_glyphs;
std::vector<GLfloat> glyph_spacings;
GLfloat font_y_min, font_y_max, font_height;
GLuint tex_side;
unsigned frame_no;
ExampleSyncQueue thread_ready;
ExampleSyncQueue& parent_ready;
public:
FBTexThread(FBTexExample& example)
: gl()
, dsa()
, npr()
, text_glyphs(128)
, tex_side(512)
, frame_no(0)
, parent_ready(example.parent_ready)
{
example.thread_ready = &thread_ready;
Texture::Active(0);
example.tex
<< images::ImageSpec(
tex_side, tex_side,
);
<< images::ImageSpec(
tex_side, tex_side,
);
<< FramebufferAttachment::Color << example.tex
shape.SVGString(
"m 43.371378,37.539671"
"c 13.611668,15.8582"
" 19.209264,30.90734"
" 23.672964,45.82925"
" 3.661218,8.4554"
" 12.165653,10.28682"
" 20.035286,12.9651"
"l 23.240262,-25.01766"
"c -1.46397,-11.60113"
" -7.97625,-19.26946"
" -17.458566,-24.59093"
" -16.102248,-6.17383"
" -32.841826,-7.28036"
" -49.489946,-9.18576"
"z"
"m 69.224042,34.9532"
" -24.470964,26.1184"
"c -0.424168,2.860869"
" 1.771705,3.638839"
" 4.947536,3.651769"
"L 117.01841,76.122411"
"c -0.6978,-1.73312"
" -1.57354,-3.37403"
" -4.42299,-3.62954"
"z"
"m 96.74348,13.86489"
" -3.83844,0.0475"
" -30.37174,32.119769"
" -1.09321,3.59966"
" 21.04835,15.49073"
" 3.9258,-0.73053"
" 30.37173,-32.11976"
" 0.34543,-2.70113"
"z"
"m -90.1373,-8.06177"
" -23.478345,25.779639"
" 34.731575,28.08879"
" 19.92164,-19.41255"
" 6.63604,-2.40327"
" 15.2551,11.02897"
" 1.86981,-4.99851"
"z"
"m 121.25631,22.884729"
" -5.63826,0.64963"
" -34.50826,36.69755"
" 0.17514,2.75441"
" 17.44637,12.03959"
" 1.34218,3.25131"
" -11.42007,14.24354"
" 3.90638,3.5452"
" 3.07023,-2.01334"
" 47.96771,-55.8908"
"c -5.2881,-6.90958"
" -13.00669,-13.42756"
" -22.34142,-15.27709"
"z"
"m -82.97086,12.33038"
" -4.96607,1.44186"
"c -16.74585,15.3575"
" -31.13455,31.43379"
" -42.31266,48.51177"
" 14.32975,15.18082"
" 29.75001,29.95699"
" 50.10018,42.90383"
"l -12.86997,89.36422"
" 76.0707,7.53421"
" 4.08806,-49.56176"
"c 2.63515,-16.68351"
" 11.16889,-28.57327"
" 20.4365,-35.81021"
"l -43.78946,-30.11675"
"c -7.37799,-6.14328"
" -6.76172,-11.95465"
" -30.59946,-14.4867"
" -7.3681,-8.26173"
" -16.91998,-15.58704"
" -17.77179,-25.44079"
"l 3.19111,-1.30899"
"c 5.66966,8.17456"
" 5.04135,19.14781"
" 19.90453,26.63415"
" 16.79016,-0.42901"
" 33.48024,-8.77684"
" 37.51318,-17.5806"
"z"
"m 100.47604,12.17096"
" -41.13754,47.8457"
" -1.28556,3.45416"
" 19.69984,15.03817"
" 3.00685,-2.61745"
" 39.98919,-47.11398"
" 0.20368,-2.96727"
"c -5.20109,-4.99"
" -10.11474,-10.17304"
" -17.87754,-13.34188"
"z"
"m 17.21754,25.10098"
" -2.34127,0.98707"
" -32.55714,39.03611"
" -2.52598,2.98121"
" 15.36908,11.51245"
" 4.68518,0.47953"
" 34.77739,-39.62667"
" -0.55381,-3.64243"
"c -3.06075,-4.58721"
" -10.50061,-10.2548"
" -16.85345,-11.72727"
"z"
"m -72.86065,19.8761"
" -15.2679,3.0925"
"c 26.57114,13.9239"
" 43.79716,29.59996"
" 65.69469,44.40557"
" 31.09815,22.86624"
" 63.72592,40.27978"
" 100.34072,52.54386"
" -19.7004,-24.16603"
" -45.48586,-53.7133"
" -80.19406,-78.6645"
"l -13.63751,16.18691"
" -7.41411,-0.0354"
"z"
"m -60.76927,125.44609"
" -8.79676,44.89633"
" 92.36105,9.4532"
" 3.89632,-45.39793"
"z"
);
GLfloat font_scale = 48;
text_glyphs.GlyphRange(
"Sans",
0, 128,
~0,
font_scale
);
gl.ClearColor(1.0f, 1.0f, 1.0f, 1.0f);
gl.ClearStencil(0);
gl.StencilMask(~0);
gl.StencilFunc(CompareFunction::NotEqual, 0, 0xFF);
gl.StencilOp(
);
gl.Viewport(tex_side, tex_side);
dsa.ProjectionMatrix()
.LoadIdentity()
.Ortho(0, tex_side, 0, tex_side, -1, 1);
GLfloat font_min_max[2];
text_glyphs.GetMetricRange(
1, 0,
font_min_max
);
font_y_min = font_min_max[0];
font_y_max = font_min_max[1];
font_height = font_y_max - font_y_min;
}
void RenderText(const String& text)
{
glyph_spacings.resize(text.size()+1);
text_glyphs.GetSpacing(
text,
1.0f, 1.0f,
glyph_spacings
);
glyph_spacings.insert(glyph_spacings.begin(), 0);
text_glyphs.StencilFillInstanced(
text,
0xFF,
glyph_spacings
);
text_glyphs.CoverFillInstanced(
text,
glyph_spacings
);
}
void Cancel(void)
{
parent_ready.Cancel();
thread_ready.Cancel();
}
void Render(double time)
{
gl.Clear().ColorBuffer().StencilBuffer();
int border = 20;
std::stringstream text;
// shape colors
GLfloat shape_color_gen_coeffs[9] = {
0.0f, 0.0f, 0.2f,
0.2f, 0.0f, 0.2f,
0.0f, 0.0f, 0.2f
};
npr.ColorGen(
shape_color_gen_coeffs
);
// Shape
dsa.ModelviewMatrix()
.LoadIdentity()
.Translate(64, 64, 0)
.Translate(192, 192, 0)
.Rotate(RightAngles(time), Vec3f::Unit(2))
.Translate(-192, -192, 0);
shape.StencilFill(PathNVFillMode::CountUp, 0xFF);
// text colors
GLfloat text_color_gen_coeffs[9] = {
-0.3f, 0.0f, 0.3f,
0.0f, 0.2f, 0.6f,
0.3f, 0.0f, 0.0f
};
npr.ColorGen(
text_color_gen_coeffs
);
// Time
dsa.ModelviewMatrix()
.LoadIdentity()
.Translate(border, border, 0);
text << "Time: "
<< std::setw(7)
<< std::setprecision(2)
<< std::fixed
<< time << "[s]";
RenderText(text.str());
text.str(std::string());
// Frame no
dsa.ModelviewMatrix()
.LoadIdentity()
.Translate(tex_side-border, border, 0)
.Rotate(RightAngle(), Vec3f::Unit(2));
text << "Frame: "
<< std::setw(7)
<< std::fixed
<< frame_no;
RenderText(text.str());
text.str(std::string());
// FPS
dsa.ModelviewMatrix()
.LoadIdentity()
.Translate(tex_side-border, tex_side-border, 0)
.Rotate(RightAngles(2), Vec3f::Unit(2));
text << "FPS: ";
if(time < 1) text << "<N/A>";
else text << std::setw(7) << std::fixed << frame_no / time;
RenderText(text.str());
text.str(std::string());
// title
dsa.ModelviewMatrix()
.LoadIdentity()
.Translate(border, tex_side-border, 0)
.Rotate(RightAngles(3), Vec3f::Unit(2));
RenderText("OpenGL");
// sync
thread_ready.Signal();
parent_ready.Wait();
++frame_no;
}
};
void setupExample(ExampleParams& params)
{
if(params.max_threads > 0)
{
params.num_threads = 1;
params.compat_context_threads.insert(0);
}
else throw std::runtime_error(
"This example requires multi-threading"
);
}
std::unique_ptr<ExampleThread> makeExampleThread(
Example& example,
unsigned thread_id,
const ExampleParams& /*params*/
)
{
assert(thread_id == 0);
return std::unique_ptr<ExampleThread>(
new FBTexThread(
dynamic_cast<FBTexExample&>(example)
)
);
}
std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
return std::unique_ptr<Example>(new FBTexExample);
}
} // namespace oglplus
