oglplus/025_subroutines.cpp

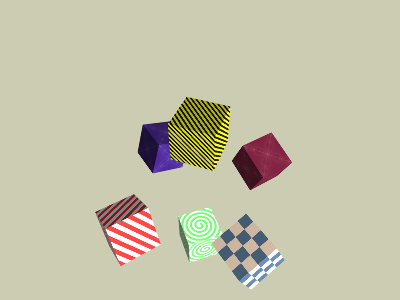

Shows the usage of subroutines and subroutine uniforms

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/opt/list_init.hpp>

#include <oglplus/shapes/cube.hpp>
#include <oglplus/shapes/wrapper.hpp>
#include <oglplus/images/newton.hpp>

#include <oglplus/bound/texture.hpp>

#include <cmath>

#include "example.hpp"

namespace oglplus {

class CubeVertShader
 : public VertexShader
{
public:
    CubeVertShader(void)
     : VertexShader(
        ObjectDesc("Cube vertex"),
        "#version 400\n"
        "uniform vec3 LightPosition;"
        "uniform vec3 CameraPosition;"
        "uniform mat4 ProjectionMatrix, CameraMatrix, ModelMatrix;"

        "in vec4 Position;"
        "in vec3 Normal;"
        "in vec3 TexCoord;"

        "out vec3 vertNormal;"
        "out vec3 vertLightDir;"
        "out vec3 vertLightRefl;"
        "out vec3 vertViewDir;"
        "out vec2 vertTexCoord;"
        "void main(void)"
        "{"
        "   gl_Position = ModelMatrix* Position;"
        "   vertNormal = mat3(ModelMatrix)*Normal;"
        "   vertLightDir = normalize(LightPosition - gl_Position.xyz);"
        "   vertLightRefl = reflect(-vertLightDir, vertNormal);"
        "   vertViewDir = normalize(CameraPosition - gl_Position.xyz);"
        "   gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
        "   vertTexCoord = TexCoord.xy;"
        "}"
    )
    { }
};

class CubeFragShader
 : public FragmentShader
{
public:
    CubeFragShader(void)
     : FragmentShader(
        ObjectDesc("Cube fragment"),
        "#version 400\n"

        "subroutine vec3 pixelColorFuncType(vec2 TexCoord);"

        "subroutine vec3 pixelLightFuncType("
        "   vec3 Color, "
        "   float Ambient, "
        "   float Diffuse, "
        "   float Specular"
        ");"


        "uniform vec3 Color1, Color2;"
        "uniform vec2 TexScale;"
        "uniform float SpecularFactor;"
        "uniform sampler2D CubeTex;"
        "subroutine uniform pixelColorFuncType pixelColorFunc;"
        "subroutine uniform pixelLightFuncType pixelLightFunc;"

        "in vec3 vertNormal;"
        "in vec3 vertLightDir;"
        "in vec3 vertLightRefl;"
        "in vec3 vertViewDir;"
        "in vec2 vertTexCoord;"

        "out vec3 fragColor;"

        "const vec3 LightColor = vec3(1.0, 1.0, 1.0);"

        "subroutine(pixelLightFuncType)"
        "vec3 shiny("
        "   vec3 Color, "
        "   float Ambient, "
        "   float Diffuse, "
        "   float Specular"
        ")"
        "{"
        "   return (Ambient+Diffuse)*Color +"
        "       Specular * LightColor;"
        "}"

        "subroutine(pixelLightFuncType)"
        "vec3 dull("
        "   vec3 Color, "
        "   float Ambient, "
        "   float Diffuse, "
        "   float Specular"
        ")"
        "{"
        "   return (Ambient+Diffuse*0.9)*Color +"
        "       Specular*0.1 * LightColor;"
        "}"

        "subroutine(pixelColorFuncType)"
        "vec3 checker(vec2 TexCoord)"
        "{"
        "   float a = ("
        "       int(TexCoord.x)%2+"
        "       int(TexCoord.y)%2 "
        "   )%2;"
        "   return mix(Color1, Color2, a);"
        "}"

        "subroutine(pixelColorFuncType)"
        "vec3 strips(vec2 TexCoord)"
        "{"
        "   float a = int(TexCoord.x+TexCoord.y)%2;"
        "   return mix(Color1, Color2, a);"
        "}"


        "subroutine(pixelColorFuncType)"
        "vec3 spiral(vec2 TexCoord)"
        "{"
        "   vec2  center = (TexCoord - vec2(0.5, 0.5)) * 16.0;"
        "   float l = length(center);"
        "   float t = atan(center.y, center.x)/(2.0*asin(1.0));"
        "   float m = int(l+t) % 2;"
        "   return mix(Color1, Color2, m);"
        "}"

        "subroutine(pixelColorFuncType)"
        "vec3 textureRGB(vec2 TexCoord)"
        "{"
        "   return texture(CubeTex, TexCoord).rgb;"
        "}"

        "subroutine(pixelColorFuncType)"
        "vec3 textureBGR(vec2 TexCoord)"
        "{"
        "   return texture(CubeTex, TexCoord).bgr;"
        "}"

        "void main(void)"
        "{"
        "   float Ambient = 0.5;"

        "   float Diffuse = max(dot("
        "       normalize(vertNormal),"
        "       normalize(vertLightDir)"
        "   )+0.1, 0.0);"

        "   float Specular = pow(clamp(dot("
        "       normalize(vertViewDir),"
        "       normalize(vertLightRefl)"
        "   ), 0.0, 1.0), SpecularFactor);"

        "   fragColor = pixelLightFunc("
        "       pixelColorFunc(vertTexCoord * TexScale),"
        "       Ambient, "
        "       Diffuse, "
        "       Specular "
        "   );"
        "}"
    )
    { }
};

class CubeProgram : public Program
{
private:
    static Program make(void)
    {
        Program prog(ObjectDesc("Cube program"));
        prog.AttachShader(CubeVertShader());
        prog.AttachShader(CubeFragShader());
        prog.Link().Use();
        return prog;
    }
    const Program& prog(void) const { return *this; }
public:
    ProgramUniform<Mat4f> projection_matrix, camera_matrix, model_matrix;
    ProgramUniform<Vec3f> camera_position, light_position;
    ProgramUniform<Vec3f> color_1, color_2;
    ProgramUniform<Vec2f> tex_scale;
    ProgramUniform<GLfloat> specular_factor;
    ProgramUniformSampler cube_tex;

    SubroutineUniform pixel_light_func, pixel_color_func;

    Subroutine shiny, dull;
    Subroutine checker, strips, spiral, texture_rgb, texture_bgr;

    UniformSubroutines frag_subroutines;

    UniformSubroutines::Preset frag_shiny_checker;
    UniformSubroutines::Preset frag_shiny_texture;
    UniformSubroutines::Preset frag_shiny_strips;
    UniformSubroutines::Preset frag_shiny_spiral;

    CubeProgram(void)
     : Program(make())
     , projection_matrix(prog(), "ProjectionMatrix")
     , camera_matrix(prog(), "CameraMatrix")
     , model_matrix(prog(), "ModelMatrix")
     , camera_position(prog(), "CameraPosition")
     , light_position(prog(), "LightPosition")
     , color_1(prog(), "Color1")
     , color_2(prog(), "Color2")
     , tex_scale(prog(), "TexScale")
     , specular_factor(prog(), "SpecularFactor")
     , cube_tex(prog(), "CubeTex")
     , pixel_light_func(prog(), ShaderType::Fragment, "pixelLightFunc")
     , pixel_color_func(prog(), ShaderType::Fragment, "pixelColorFunc")
     , shiny(prog(), ShaderType::Fragment, "shiny")
     , dull(prog(), ShaderType::Fragment, "dull")
     , checker(prog(), ShaderType::Fragment, "checker")
     , strips(prog(), ShaderType::Fragment, "strips")
     , spiral(prog(), ShaderType::Fragment, "spiral")
     , texture_rgb(prog(), ShaderType::Fragment, "textureRGB")
     , texture_bgr(prog(), ShaderType::Fragment, "textureBGR")
     , frag_subroutines(prog(), ShaderType::Fragment)
     , frag_shiny_checker(
        frag_subroutines
            .Assign(pixel_light_func, shiny)
            .Assign(pixel_color_func, checker)
            .Save()
    ), frag_shiny_texture(
        frag_subroutines
            .Assign(pixel_color_func, texture_rgb)
            .Save()
    ), frag_shiny_strips(
        frag_subroutines
            .Assign(pixel_color_func, strips)
            .Save()
    ), frag_shiny_spiral(
        frag_subroutines
            .Assign(pixel_color_func, spiral)
            .Save()
    )
    { }
};

class CubeExample : public Example
{
private:
    // wrapper around the current OpenGL context
    Context gl;

    // the cube shading program
    CubeProgram cube_prog;

    // texture applied to the cube
    Texture cube_tex;

    // wraper for the cube builder, VAO and VBOs
    shapes::ShapeWrapper cube;
public:
    CubeExample(void)
     : cube(
        List("Position")("Normal")("TexCoord").Get(),
        shapes::Cube(),
        cube_prog
    )
    {
        // setup the texture
        {
            GLuint tex_side = 512;
            auto image = images::NewtonFractal(
                tex_side, tex_side,
                Vec3f(0.2f, 0.1f, 0.4f),
                Vec3f(0.8f, 0.8f, 1.0f),
                Vec2f(-1.0f, -1.0f),
                Vec2f( 1.0f,  1.0f),
                images::NewtonFractal::X4Minus1(),
                images::NewtonFractal::DefaultMixer()
            );

            gl.Bound(Texture::Target::_2D, cube_tex)
                .Image2D(image)
                .GenerateMipmap()
                .BorderColor(Vec4f(0.8f, 0.8f, 1.0f, 1.0f))
                .MinFilter(TextureMinFilter::LinearMipmapLinear)
                .MagFilter(TextureMagFilter::Linear)
                .WrapS(TextureWrap::Repeat)
                .WrapT(TextureWrap::Repeat);
        }

        cube_prog.cube_tex = 0;
        cube_prog.light_position.Set(4.0f, 4.0f, -8.0f);

        gl.ClearColor(0.8f, 0.8f, 0.7f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);
        gl.Enable(Capability::CullFace);
        gl.CullFace(Face::Back);
    }

    void Reshape(GLuint width, GLuint height)
    {
        gl.Viewport(width, height);
        cube_prog.projection_matrix = CamMatrixf::PerspectiveX(
            Degrees(60),
            double(width)/height,
            1, 25
        );
    }

    void Render(double time)
    {
        gl.Clear().ColorBuffer().DepthBuffer();
        //
        auto camera = CamMatrixf::Orbiting(
            Vec3f(0.0, 1.5, 0.0),
            7.0 + SineWave(time / 11.0)*1.5,
            FullCircles(time / 19.0),
            Degrees(SineWave(time / 20.0) * 30 + 35)
        );
        cube_prog.camera_matrix = camera;
        cube_prog.camera_position = camera.Position();


        // shiny gray/blue checkered cube
        cube_prog.frag_subroutines.Apply(cube_prog.frag_shiny_checker);

        cube_prog.specular_factor = 32;
        cube_prog.color_1 = Vec3f(0.9, 0.8, 0.7);
        cube_prog.color_2 = Vec3f(0.3, 0.4, 0.5);
        cube_prog.tex_scale = Vec2f(4, 4);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation( 2.0, 0.0, 0.0)*
            ModelMatrixf::RotationX(Degrees(25 * time));
        cube.Draw();

        // shiny textured cube
        cube_prog.frag_subroutines.Apply(cube_prog.frag_shiny_texture);

        cube_prog.specular_factor = 16;
        cube_prog.tex_scale = Vec2f(1, 1);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation(-2.0, 0.0, 0.0)*
            ModelMatrixf::RotationX(Degrees(-17 * time));
        cube.Draw();

        // shiny yellow/black striped cube
        cube_prog.frag_subroutines.Apply(cube_prog.frag_shiny_strips);

        cube_prog.specular_factor = 32;
        cube_prog.color_1 = Vec3f(0.9, 0.9, 0.1);
        cube_prog.color_2 = Vec3f(0.1, 0.1, 0.1);
        cube_prog.tex_scale = Vec2f(16, 16);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation( 0.0, 2.0, 0.0)*
            ModelMatrixf::RotationY(Degrees(37 * time));
        cube.Draw();

        // shiny gray/green spiral cube
        cube_prog.frag_subroutines.Apply(cube_prog.frag_shiny_spiral);

        cube_prog.specular_factor = 24;
        cube_prog.color_1 = Vec3f(0.9, 0.9, 0.9);
        cube_prog.color_2 = Vec3f(0.4, 0.9, 0.4);
        cube_prog.tex_scale = Vec2f(1, 1);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation( 0.0,-2.0, 0.0)*
            ModelMatrixf::RotationY(Degrees(-13 * time));
        cube.Draw();

        // dull white/red striped cube
        cube_prog.frag_subroutines
            .Assign(
                cube_prog.pixel_light_func,
                cube_prog.dull
            ).Assign(
                cube_prog.pixel_color_func,
                cube_prog.strips
            ).Apply();

        cube_prog.specular_factor = 32;
        cube_prog.color_2 = Vec3f(1.0, 1.0, 1.0);
        cube_prog.color_1 = Vec3f(0.9, 0.2, 0.2);
        cube_prog.tex_scale = Vec2f(8, 6);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation( 0.0, 0.0, 2.0)*
            ModelMatrixf::RotationZ(Degrees(27 * time));
        cube.Draw();

        // dull textured cube
        cube_prog.frag_subroutines
            .Assign(
                cube_prog.pixel_color_func,
                cube_prog.texture_bgr
            ).Apply();

        cube_prog.tex_scale = Vec2f(1, 1);
        cube_prog.model_matrix =
            ModelMatrixf::RotationY(FullCircles(time / 7.0))*
            ModelMatrixf::Translation( 0.0, 0.0,-2.0)*
            ModelMatrixf::RotationZ(Degrees(-23 * time));
        cube.Draw();
    }

    bool Continue(double time)
    {
        return time < 30.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
    return std::unique_ptr<Example>(new CubeExample);
}

} // namespace oglplus
