OGLplus (0.52.0) a C++ wrapper for OpenGL

oglplus/020_cube_mapping.cpp

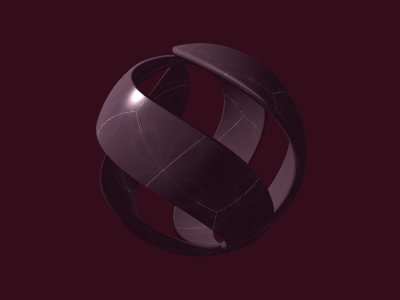

Shows how to draw an object with cube mapped surface


Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <cmath>
#include "example.hpp"
namespace oglplus {
class CubeMapExample : public Example
{
private:
// helper object building shape vertex attributes
shapes::SpiralSphere make_shape;
// helper object encapsulating shape drawing instructions
shapes::DrawingInstructions shape_instr;
// indices pointing to shape primitive elements
// wrapper around the current OpenGL context
Context gl;
// Vertex shader
// Fragment shader
// Program
Program prog;
// Uniforms
Lazy<Uniform<Mat4f>> projection_matrix, camera_matrix, model_matrix;
// A vertex array object for the rendered shape
VertexArray shape;
// VBOs for the shape's vertex attributes
Buffer verts, normals;
// The environment cube map
Texture tex;
public:
CubeMapExample(void)
: shape_instr(make_shape.Instructions())
, shape_indices(make_shape.Indices())
, projection_matrix(prog, "ProjectionMatrix")
, camera_matrix(prog, "CameraMatrix")
, model_matrix(prog, "ModelMatrix")
{
// Set the vertex shader source
vs.Source(
"#version 330\n"
"uniform mat4 ProjectionMatrix, CameraMatrix, ModelMatrix;"
"in vec4 Position;"
"in vec3 Normal;"
"in vec2 TexCoord;"
"out vec3 vertNormal;"
"out vec3 vertLightDir;"
"out vec3 vertLightRefl;"
"out vec3 vertViewDir;"
"out vec3 vertViewRefl;"
"uniform vec3 LightPos;"
"void main(void)"
"{"
" gl_Position = ModelMatrix * Position;"
" vertNormal = mat3(ModelMatrix)*Normal;"
" vertLightDir = LightPos - gl_Position.xyz;"
" vertLightRefl = reflect("
" -normalize(vertLightDir),"
" normalize(vertNormal)"
" );"
" vertViewDir = ("
" vec4(0.0, 0.0, 1.0, 1.0)*"
" CameraMatrix"
" ).xyz;"
" vertViewRefl = reflect("
" normalize(vertViewDir),"
" normalize(vertNormal)"
" );"
" gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
"}"
);
// compile it
vs.Compile();
// set the fragment shader source
fs.Source(
"#version 330\n"
"uniform samplerCube TexUnit;"
"in vec3 vertNormal;"
"in vec3 vertLightDir;"
"in vec3 vertLightRefl;"
"in vec3 vertViewDir;"
"in vec3 vertViewRefl;"
"out vec4 fragColor;"
"void main(void)"
"{"
" float l = length(vertLightDir);"
" float d = dot("
" normalize(vertNormal), "
" normalize(vertLightDir)"
" ) / l;"
" float s = dot("
" normalize(vertLightRefl),"
" normalize(vertViewDir)"
" );"
" vec3 lt = vec3(1.0, 1.0, 1.0);"
" vec3 env = texture(TexUnit, vertViewRefl).rgb;"
" fragColor = vec4("
" env * 0.4 + "
" (lt + env) * 1.5 * max(d, 0.0) + "
" lt * pow(max(s, 0.0), 64), "
" 1.0"
" );"
"}"
);
// compile it
fs.Compile();
// attach the shaders to the program
prog.AttachShader(vs);
prog.AttachShader(fs);
// link and use it
prog.Link();
prog.Use();
// bind the VAO for the shape
shape.Bind();
verts.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_shape.Positions(data);
Buffer::Data(Buffer::Target::Array, data);
VertexArrayAttrib attr(prog, "Position");
attr.Setup<GLfloat>(n_per_vertex);
attr.Enable();
}
normals.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_shape.Normals(data);
Buffer::Data(Buffer::Target::Array, data);
VertexArrayAttrib attr(prog, "Normal");
attr.Setup<GLfloat>(n_per_vertex);
attr.Enable();
}
// setup the texture
{
GLuint tex_side = 256;
auto image = images::NewtonFractal(
tex_side, tex_side,
Vec3f(0.3f, 0.1f, 0.2f),
Vec3f(1.0f, 0.8f, 0.9f),
Vec2f(-1.0f, -1.0f),
Vec2f( 1.0f, 1.0f),
images::NewtonFractal::X4Minus1(),
images::NewtonFractal::DefaultMixer()
);
auto tex_target = Texture::Target::CubeMap;
// texture syntax sugar
tex << tex_target;
tex_target << TextureMinFilter::Linear;
tex_target << TextureMagFilter::Linear;
tex_target << TextureWrap::ClampToEdge;
for(int i=0; i!=6; ++i)
{
Texture::CubeMapFace(i) << image;
}
}
// typechecked uniform with the exact sampler type
Typechecked<Uniform<SLtoCpp<SLDataType::SamplerCube>>>(prog, "TexUnit").Set(0);
//
Uniform<Vec3f>(prog, "LightPos").Set(Vec3f(3.0f, 5.0f, 4.0f));
//
gl.ClearColor(0.2f, 0.05f, 0.1f, 0.0f);
gl.ClearDepth(1.0f);
gl.FrontFace(make_shape.FaceWinding());
gl.CullFace(Face::Back);
}
void Reshape(GLuint width, GLuint height)
{
gl.Viewport(width, height);
prog.Use();
projection_matrix.Set(
Degrees(60),
double(width)/height,
1, 100
)
);
}
void Render(double time)
{
gl.Clear().ColorBuffer().DepthBuffer();
//
// set the matrix for camera orbiting the origin
camera_matrix.Set(
Vec3f(),
4.5 - SineWave(time / 16.0) * 2.0,
FullCircles(time / 12.0),
Degrees(SineWave(time / 30.0) * 90)
)
);
// set the model matrix
model_matrix.Set(
Vec3f(1.0f, 1.0f, 1.0f),
FullCircles(time / 10.0)
)
);
shape.Bind();
shape_instr.Draw(shape_indices);
}
bool Continue(double time)
{
return time < 60.0;
}
};
void setupExample(ExampleParams& /*params*/){ }
std::unique_ptr<ExampleThread> makeExampleThread(
Example& /*example*/,
unsigned /*thread_id*/,
const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }
std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
return std::unique_ptr<Example>(new CubeMapExample);
}
} // namespace oglplus
