oglplus/018_stained_glass_cube.cpp

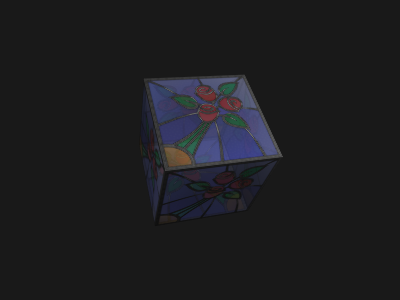

Shows how to draw a semi-transparent textured stained glass cube


Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <cmath>
#include "example.hpp"
namespace oglplus {
class CubeExample : public Example
{
private:
// helper object building cube vertex attributes
shapes::Cube make_cube;
// helper object encapsulating cube drawing instructions
shapes::DrawingInstructions cube_instr;
// indices pointing to cube primitive elements
// wrapper around the current OpenGL context
Context gl;
// Vertex shader
// Fragment shader
// Program
Program prog;
// Uniforms
Lazy<Uniform<Mat4f>> projection_matrix, camera_matrix, model_matrix;
// A vertex array object for the rendered cube
// VBOs for the cube's vertex attributes
Buffer verts, normals, texcoords;
// The stained glass texture
Texture tex;
public:
CubeExample(void)
: cube_instr(make_cube.Instructions())
, cube_indices(make_cube.Indices())
, projection_matrix(prog, "ProjectionMatrix")
, camera_matrix(prog, "CameraMatrix")
, model_matrix(prog, "ModelMatrix")
{
// Set the vertex shader source
vs.Source(
"#version 330\n"
"uniform mat4 ProjectionMatrix, CameraMatrix, ModelMatrix;"
"in vec4 Position;"
"in vec3 Normal;"
"in vec2 TexCoord;"
"out vec3 vertNormal;"
"out vec3 vertLight;"
"out vec2 vertTexCoord;"
"uniform vec3 LightPos;"
"void main(void)"
"{"
" gl_Position = ModelMatrix * Position;"
" vertNormal = mat3(ModelMatrix)*Normal;"
" vertLight = LightPos - gl_Position.xyz;"
" vertTexCoord = TexCoord;"
" gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
"}"
);
// compile it
vs.Compile();
// set the fragment shader source
fs.Source(
"#version 330\n"
"uniform sampler2D TexUnit;"
"in vec3 vertNormal;"
"in vec3 vertLight;"
"in vec2 vertTexCoord;"
"out vec4 fragColor;"
"void main(void)"
"{"
" float l = length(vertLight);"
" float d = l != 0.0 ? dot(vertNormal, normalize(vertLight))/l : 0.0;"
" float e = (d < 0? -0.7*d: d) * 3.0;"
" float i = 0.1 + e;"
" vec4 t = texture(TexUnit, vertTexCoord);"
" fragColor = vec4(t.rgb*i, t.a);"
"}"
);
// compile it
fs.Compile();
// attach the shaders to the program
prog.AttachShader(vs);
prog.AttachShader(fs);
// link and use it
prog.Link();
prog.Use();
// bind the VAO for the cube
cube.Bind();
verts.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_cube.Positions(data);
Buffer::Data(Buffer::Target::Array, data);
VertexArrayAttrib attr(prog, "Position");
attr.Setup<GLfloat>(n_per_vertex);
attr.Enable();
}
normals.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_cube.Normals(data);
Buffer::Data(Buffer::Target::Array, data);
VertexArrayAttrib attr(prog, "Normal");
attr.Setup<GLfloat>(n_per_vertex);
attr.Enable();
}
texcoords.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_cube.TexCoordinates(data);
Buffer::Data(Buffer::Target::Array, data);
VertexArrayAttrib attr(prog, "TexCoord");
attr.Setup<GLfloat>(n_per_vertex);
attr.Enable();
}
// setup the texture
tex << Texture::Target::_2D
<< images::LoadTexture("flower_glass")
<< TextureMipmap()
//
UniformSampler(prog, "TexUnit").Set(0);
Uniform<Vec3f>(prog, "LightPos").Set(Vec3f(1.0f, 2.0f, 3.0f));
//
gl.ClearColor(0.1f, 0.1f, 0.1f, 0.0f);
gl.ClearDepth(1.0f);
gl.Enable(Capability::Blend);
gl.BlendFunc(
);
gl.FrontFace(make_cube.FaceWinding());
}
void Reshape(GLuint width, GLuint height)
{
gl.Viewport(width, height);
prog.Use();
projection_matrix.Set(
Degrees(60),
double(width)/height,
1, 20
)
);
}
void Render(double time)
{
gl.Clear().ColorBuffer().DepthBuffer();
//
// set the matrix for camera orbiting the origin
camera_matrix.Set(
Vec3f(),
6.0 - SineWave(time / 6.0) * 3.0,
FullCircles(time * 0.7),
Degrees(SineWave(time / 30.0) * 90)
)
);
// set the model matrix
model_matrix.Set(
);
cube.Bind();
gl.CullFace(Face::Front);
cube_instr.Draw(cube_indices);
gl.CullFace(Face::Back);
cube_instr.Draw(cube_indices);
}
bool Continue(double time)
{
return time < 30.0;
}
};
void setupExample(ExampleParams& /*params*/){ }
std::unique_ptr<ExampleThread> makeExampleThread(
Example& /*example*/,
unsigned /*thread_id*/,
const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }
std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
return std::unique_ptr<Example>(new CubeExample);
}
} // namespace oglplus
