oglplus/014_multi_cube_ub.cpp

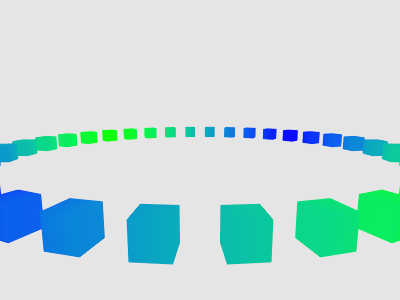

Shows how to transform and draw multiple instances of a cube


Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <algorithm>
#include "example.hpp"
namespace oglplus {
class CubeExample : public Example
{
private:
// helper object building cube vertex attributes
shapes::Cube make_cube;
// helper object encapsulating cube drawing instructions
shapes::DrawingInstructions cube_instr;
// indices pointing to cube primitive elements
// wrapper around the current OpenGL context
Context gl;
// Program
Program prog;
// Uniforms
Uniform<Mat4f> projection_matrix, camera_matrix;
// A vertex array object for the rendered cube
// VBOs for the cube's vertices and the uniform block
Buffer verts, block_buf;
public:
CubeExample(void)
: cube_instr(make_cube.Instructions())
, cube_indices(make_cube.Indices())
, projection_matrix(prog)
, camera_matrix(prog)
{
// Set the vertex shader source and compile it
vs.Source(
"#version 330\n"
"uniform mat4 ProjectionMatrix, CameraMatrix;"
"layout (std140) uniform ModelBlock {"
" mat4 ModelMatrices[36];"
"};"
"in vec4 Position;"
"out vec3 vertColor;"
"void main(void)"
"{"
" mat4 ModelMatrix = ModelMatrices[gl_InstanceID];"
" gl_Position = "
" ProjectionMatrix *"
" CameraMatrix *"
" ModelMatrix *"
" Position;"
" vertColor = abs(normalize((ModelMatrix*Position).yxz));"
"}"
).Compile();
// set the fragment shader source and compile it
fs.Source(
"#version 330\n"
"in vec3 vertColor;"
"out vec4 fragColor;"
"void main(void)"
"{"
" fragColor = vec4(vertColor, 1.0);"
"}"
).Compile();
// attach the shaders to the program
prog.AttachShader(vs);
prog.AttachShader(fs);
// link and use it
prog.Link().Use();
projection_matrix.BindTo("ProjectionMatrix");
camera_matrix.BindTo("CameraMatrix");
// bind the VAO for the cube
cube.Bind();
// bind the VBO for the cube vertices
verts.Bind(Buffer::Target::Array);
{
std::vector<GLfloat> data;
GLuint n_per_vertex = make_cube.Positions(data);
// upload the data
Buffer::Data(Buffer::Target::Array, data);
// setup the vertex attribs array for the vertices
(prog|"Position").Setup<GLfloat>(n_per_vertex).Enable();
}
// make the matrices
{
// 36 x 4x4 matrices
std::vector<GLfloat> matrix_data(36*16);
auto p = matrix_data.begin(), e = matrix_data.end();
Angle<GLfloat> angle, astep = Angle<GLfloat>::Degrees(10);
while(p != e)
{
GLfloat cx = Cos(angle);
GLfloat sx = Sin(angle);
auto matrix = Transposed(Mat4f(
Vec4f( cx, 0.0, -sx, 0.0),
Vec4f(0.0, 1.0, 0.0, 0.0),
Vec4f( sx, 0.0, cx, 0.0),
Vec4f(0.0, 0.0, 0.0, 1.0)
) * Mat4f(
Vec4f(1.0, 0.0, 0.0,12.0),
Vec4f(0.0, 1.0, 0.0, 0.0),
Vec4f(0.0, 0.0, 1.0, 0.0),
Vec4f(0.0, 0.0, 0.0, 1.0)
));
p = std::copy(
Data(matrix),
Data(matrix)+Size(matrix),
p
);
angle += astep;
}
UniformBlock model_block(prog, "ModelBlock");
model_block.Binding(0);
block_buf.Bind(Buffer::Target::Uniform);
Buffer::Data(
Buffer::Target::Uniform,
matrix_data,
);
block_buf.BindBaseUniform(0);
}
//
gl.ClearColor(0.9f, 0.9f, 0.9f, 0.0f);
gl.ClearDepth(1.0f);
}
void Reshape(GLuint width, GLuint height)
{
gl.Viewport(width, height);
prog.Use();
projection_matrix.Set(
Degrees(70),
double(width)/height,
1, 50
)
);
}
void Render(double time)
{
gl.Clear().ColorBuffer().DepthBuffer();
//
// set the matrix for camera orbiting the origin
camera_matrix.Set(
Vec3f(),
18.5,
Degrees(time * 135),
Degrees(SineWave(time / 20.0) * 30)
)
);
// draw 36 instances of the cube
// the vertex shader will take care of their placement
cube_instr.Draw(cube_indices, 36);
}
bool Continue(double time)
{
return time < 30.0;
}
};
void setupExample(ExampleParams& /*params*/){ }
std::unique_ptr<ExampleThread> makeExampleThread(
Example& /*example*/,
unsigned /*thread_id*/,
const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }
std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
return std::unique_ptr<Example>(new CubeExample);
}
} // namespace oglplus
