oglplus/007_voronoi.cpp

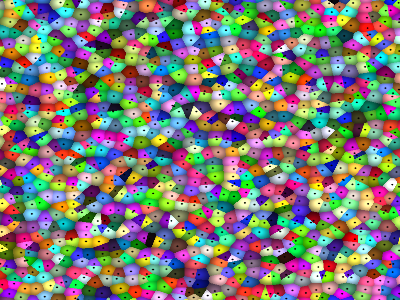

Shows an implementation of Voronoi shader

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/shapes/screen.hpp>
#include <oglplus/shapes/wrapper.hpp>

#include <oglplus/images/random.hpp>

#include <oglplus/opt/list_init.hpp>

#include "example.hpp"

#include <cstdlib>
#include <ctime>

namespace oglplus {

class TexProgram
 : public Program
{
private:
    static Program make(void)
    {
        Program prog;

        Shader vs(ShaderType::Vertex);
        vs.Source(
        "#version 330\n"

        "uniform vec2 Offset;"
        "uniform float Scale;"

        "in vec4 Position;"

        "out vec2 vertTexCoord;"

        "void main(void)"
        "{"
        "   gl_Position = Position;"
        "   vertTexCoord = Scale * (0.5*Position.xy + Offset);"
        "}"
        ).Compile();

        Shader fs(ShaderType::Fragment);
        fs.Source(
        "#version 330\n"

        "uniform float Scale;"
        "uniform sampler2D Tex;"

        "in vec2 vertTexCoord;"

        "out vec3 fragColor;"

        "const vec2 offs[9] = vec2[9]("
        "   vec2(-1,-1),"
        "   vec2(-1, 0),"
        "   vec2(-1, 1),"
        "   vec2( 0,-1),"
        "   vec2( 0, 0),"
        "   vec2( 0, 1),"
        "   vec2( 1,-1),"
        "   vec2( 1, 0),"
        "   vec2( 1, 1) "
        ");"

        "float dist(vec2 tc, vec2 ofs)"
        "{"
        "   vec2 cc = floor(tc+ofs);"
        "   vec2 cp = texture(Tex, cc/textureSize(Tex, 0)).xy;"
        "   return distance(tc, cc+cp);"
        "}"

        "vec3 point_color(vec2 tc, vec2 ofs)"
        "{"
        "   vec2 cc = floor(tc+ofs);"
        "   return texture(Tex, cc/textureSize(Tex, 0)).rgb;"
        "}"

        "vec3 voronoi(vec2 tc)"
        "{"
        "   float md = 2.0;"
        "   int mc = 9;"
        "   for(int c=0; c<9; ++c)"
        "   {"
        "       float d = dist(tc, offs[c]);"
        "       if(md > d)"
        "       {"
        "           md = d;"
        "           mc = c;"
        "       }"
        "   }"
        "   return mix("
        "       point_color(tc, offs[mc])*mix(1.4, 0.5, md),"
        "       vec3(0, 0, 0),"
        "       pow(exp(1-md*512/Scale), 2.0)"
        "   );"
        "}"

        "void main(void)"
        "{"
        "   fragColor = voronoi(vertTexCoord);"
        "}"
        ).Compile();

        prog << vs << fs;
        prog.Link().Use();

        return std::move(prog);
    }

    Program& self(void)
    {
        return *this;
    }
public:
    Uniform<Vec2f> offset;
    Uniform<float> scale;

    TexProgram(void)
     : Program(make())
     , offset(self(), "Offset")
     , scale(self(), "Scale")
    {
        UniformSampler(self(), "Tex").Set(0);
    }
};

class VoronoiExample
 : public Example
{
private:
    Context gl;

    TexProgram prog;

    shapes::ShapeWrapper screen;

    Texture tex;
public:
    VoronoiExample(void)
     : gl()
     , prog()
     , screen(List("Position").Get(), shapes::Screen(), prog)
    {
        std::srand(std::time(0));

        tex << TextureTarget::_2D
            << TextureFilter::Nearest
            << TextureWrap::Repeat
            << images::RandomRGBUByte(256, 256);
    }

    void Reshape(GLuint width, GLuint height)
    {
        gl.Viewport(width, height);
    }

    void Render(double time)
    {
        float o = 2;
        float s = 24;
        prog.offset.Set(CosineWave(time/59.0)*o, SineWave(time/61.0)*o);
        prog.scale.Set(s + 1 + SineWave(time / 19.0)*s);

        screen.Draw();
    }

    bool Continue(double time)
    {
        return time < 60.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
    return std::unique_ptr<Example>(new VoronoiExample);
}

} // namespace oglplus
