oglplus/024_particle_trails.cpp

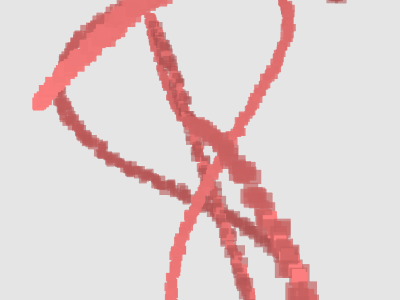

Shows how to draw multpile properly sorted particle systems

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>
#include <oglplus/opt/list_init.hpp>

#include <vector>
#include <algorithm>
#include <cmath>
#include <cassert>

#include "example.hpp"

namespace oglplus {

// Encapsulates a particle emitter
class ParticleSystem
{
private:
    CubicBezierLoop<Vec3f, double> path;
    double cycle_time;
    double lifetime;
    double spawn_interval;
    double spawn_time;

    std::vector<Vec3f> positions;
    std::vector<Vec3f> directions;
    std::vector<float> ages;

    // Creates a directional vector for a new particle
    static Vec3f NewDirection(void)
    {
        float disp = 0.4f;
        float dx = (0.5f - (float(std::rand())/RAND_MAX))*disp;
        float dy = (0.5f - (float(std::rand())/RAND_MAX))*disp;
        float dz = (0.5f - (float(std::rand())/RAND_MAX))*disp;
        return Vec3f(dx, dy, dz);
    }

    // Spawns a new particle if the time is right
    bool SpawnParticle(
        double time,
        Vec3f& position,
        Vec3f& direction,
        float& age
    )
    {
        float new_age = time - spawn_time - spawn_interval;
        if(new_age >= 0.0f)
        {
            spawn_time += spawn_interval;
            direction = NewDirection();
            Vec3f emitter_pos = path.Position(spawn_time/cycle_time);
            position = emitter_pos + direction;
            age = new_age;
            return true;
        }
        return false;
    }
public:
    ParticleSystem(
        const std::vector<Vec3f>& path_points,
        double path_time,
        double part_per_sec
    ): path(path_points)
     , cycle_time(path_time)
     , lifetime(10.0)
     , spawn_interval(1.0 / part_per_sec)
     , spawn_time(0.0)
    {
        assert(cycle_time > 0.0);
    }

    // Updates the emitter
    // Changes its position, emits new particles
    void Update(ExampleClock& clock)
    {
        assert(positions.size() == directions.size());
        assert(positions.size() == ages.size());

        double time_diff = clock.Interval().Seconds();
        double drag = 0.1 * time_diff;
        if(drag > 1.0) drag = 1.0;

        // go through the existing particles
        for(GLuint i=0, n=positions.size(); i!=n; ++i)
        {
            // update the age
            ages[i] += time_diff / lifetime;
            // if the particle is "too old"
            if(ages[i] > 1.0)
            {
                // try to spawn a new one in its place
                SpawnParticle(
                    clock.Now().Seconds(),
                    positions[i],
                    directions[i],
                    ages[i]
                );
            }
            else
            {
                // otherwise just update its motion
                directions[i] *= (1.0 - drag);
                positions[i] += directions[i] * time_diff;
            }
        }
        Vec3f position;
        Vec3f direction;
        float age;
        // spawn new particles if necessary
        while(SpawnParticle(clock.Now().Seconds(), position, direction, age))
        {
            positions.push_back(position);
            directions.push_back(direction);
            ages.push_back(age);
        }
    }

    void Upload(std::vector<Vec3f>& pos, std::vector<float>& age)
    {
        pos.insert(pos.end(), positions.begin(), positions.end());
        age.insert(age.end(), ages.begin(), ages.end());
    }
};

class SmokeExample : public Example
{
private:
    // A list of particle emitters
    std::vector<ParticleSystem> emitters;

    // wrapper around the current OpenGL context
    Context gl;

    // Program
    Program prog;
    static Program make_prog(void)
    {
        VertexShader vs;
        vs.Source(
            "#version 330\n"
            "uniform mat4 CameraMatrix;"
            "in vec4 Position;"
            "in float Age;"
            "out float vertAge;"
            "void main(void)"
            "{"
            "   gl_Position = CameraMatrix * Position;"
            "   vertAge = Age;"
            "}"
        );
        vs.Compile();

        GeometryShader gs;
        gs.Source(
            "#version 330\n"
            "layout(points) in;"
            "layout(triangle_strip, max_vertices = 4) out;"
            "uniform mat4 ProjectionMatrix;"
            "in float vertAge[];"
            "out float geomAge;"
            "void main(void)"
            "{"
            "   if(vertAge[0] > 1.0) return;"
            "   float s = 0.5;"
            "   float yo[2] = float[2](-1.0, 1.0);"
            "   float xo[2] = float[2](-1.0, 1.0);"
            "   for(int j=0;j!=2;++j)"
            "   for(int i=0;i!=2;++i)"
            "   {"
            "       float xoffs = xo[i]*(1.0+vertAge[0])*s;"
            "       float yoffs = yo[j]*(1.0+vertAge[0])*s;"
            "       gl_Position = ProjectionMatrix * vec4("
            "           gl_in[0].gl_Position.x-xoffs,"
            "           gl_in[0].gl_Position.y-yoffs,"
            "           gl_in[0].gl_Position.z,"
            "           1.0"
            "       );"
            "       geomAge = vertAge[0];"
            "       EmitVertex();"
            "   }"
            "   EndPrimitive();"
            "}"
        );
        gs.Compile();

        FragmentShader fs;
        fs.Source(
            "#version 330\n"
            "in float geomAge;"
            "out vec4 fragColor;"
            "void main(void)"
            "{"
            "   vec3 Color1 = vec3(1.0, 0.5, 0.5);"
            "   vec3 Color2 = vec3(0.3, 0.1, 0.1);"
            "   fragColor = vec4("
            "       mix(Color1, Color2, geomAge),"
            "       1.0 - geomAge"
            "   );"
            "}"
        );
        fs.Compile();

        Program prog;
        prog.AttachShader(vs);
        prog.AttachShader(gs);
        prog.AttachShader(fs);
        prog.Link();
        prog.Use();

        return prog;
    }

    // Uniforms
    Uniform<Mat4f> projection_matrix, camera_matrix;

    // A vertex array object for the particles
    VertexArray particles;

    // VBOs for the particle positions and ages
    Buffer pos_buf, age_buf;

    std::vector<Vec3f> positions;
    std::vector<float> ages;
public:
    SmokeExample(void)
     : emitters()
     , prog(make_prog())
     , projection_matrix(prog, "ProjectionMatrix")
     , camera_matrix(prog, "CameraMatrix")
    {
        emitters.push_back(
            ParticleSystem(
                ListOf<Vec3f>
                    (Vec3f(-20.0f, -10.0f,  10.0f))
                    (Vec3f( 20.0f,   0.0f, -20.0f))
                    (Vec3f( 20.0f,  10.0f,  20.0f))
                    (Vec3f(-20.0f,   0.0f, -10.0f))
                .As<std::vector<Vec3f>>(), 5.0, 200.0
            )
        );
        emitters.push_back(
            ParticleSystem(
                ListOf<Vec3f>
                    (Vec3f( 30.0f,   0.0f,   0.0f))
                    (Vec3f(-30.0f,   0.0f,   0.0f))
                    (Vec3f(-20.0f,  20.0f,   0.0f))
                    (Vec3f( 20.0f, -10.0f,   0.0f))
                .As<std::vector<Vec3f>>(), 3.0, 200.0
            )
        );
        emitters.push_back(
            ParticleSystem(
                ListOf<Vec3f>
                    (Vec3f(  5.0f,  20.0f,  20.0f))
                    (Vec3f( -5.0f,  20.0f, -20.0f))
                    (Vec3f(  5.0f, -20.0f, -20.0f))
                    (Vec3f( -5.0f, -20.0f,  20.0f))
                .As<std::vector<Vec3f>>(), 20.0, 100.0
            )
        );

        // bind the VAO for the particles
        particles.Bind();

        // bind the VBO for the particle positions
        pos_buf.Bind(Buffer::Target::Array);
        {
            Buffer::Data(Buffer::Target::Array, positions, BufferUsage::DynamicDraw);
            VertexArrayAttrib attr(prog, "Position");
            attr.Setup<GLfloat>(3);
            attr.Enable();
        }

        // bind the VBO for the particle ages
        age_buf.Bind(Buffer::Target::Array);
        {
            Buffer::Data(Buffer::Target::Array, ages, BufferUsage::DynamicDraw);
            VertexArrayAttrib attr(prog, "Age");
            attr.Setup<GLfloat>(1);
            attr.Enable();
        }
        //
        gl.ClearColor(0.9f, 0.9f, 0.9f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);
        gl.Enable(Capability::Blend);
        gl.BlendFunc(BlendFn::SrcAlpha, BlendFn::OneMinusSrcAlpha);
    }

    void Reshape(GLuint width, GLuint height)
    {
        gl.Viewport(width, height);
        prog.Use();
        projection_matrix.Set(
            CamMatrixf::PerspectiveX(
                Degrees(60),
                double(width)/height,
                1, 100
            )
        );
    }

    void Render(ExampleClock& clock)
    {
        positions.clear();
        ages.clear();

        // update the emitters and get the particle data
        for(auto i=emitters.begin(), e=emitters.end(); i!=e; ++i)
        {
            i->Update(clock);
            i->Upload(positions, ages);
        }
        assert(positions.size() == ages.size());

        // make a camera matrix
        auto cameraMatrix = CamMatrixf::Orbiting(
            Vec3f(),
            38.0 - SineWave(clock.Now().Seconds() / 6.0) * 17.0,
            FullCircles(clock.Now().Seconds() * 0.1),
            Degrees(SineWave(clock.Now().Seconds() / 20.0) * 60)
        );

        std::vector<float> depths(positions.size());
        std::vector<GLuint> indices(positions.size());
        // calculate the depths of the particles
        for(GLuint i=0, n=positions.size(); i!=n; ++i)
        {
            depths[i] = (cameraMatrix * Vec4f(positions[i], 1.0)).z();
            indices[i] = i;
        }

        // sort the indices by the depths
        std::sort(
            indices.begin(),
            indices.end(),
            [&depths](GLuint i, GLuint j)
            {
                return depths[i] < depths[j];
            }
        );

        // upload the particle positions
        pos_buf.Bind(Buffer::Target::Array);
        Buffer::Data(Buffer::Target::Array, positions, BufferUsage::DynamicDraw);
        // upload the particle ages
        age_buf.Bind(Buffer::Target::Array);
        Buffer::Data(Buffer::Target::Array, ages, BufferUsage::DynamicDraw);

        gl.Clear().ColorBuffer().DepthBuffer();
        camera_matrix.Set(cameraMatrix);
        // use the indices to draw the particles
        gl.DrawElements(
            PrimitiveType::Points,
            indices.size(),
            indices.data()
        );
    }

    bool Continue(double time)
    {
        return time < 60.0;
    }

    double ScreenshotTime(void) const
    {
        return 4.5;
    }

    double HeatUpTime(void) const
    {
        return 0.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
    return std::unique_ptr<Example>(new SmokeExample);
}

} // namespace oglplus
