oglplus/022_blender_mesh.cpp

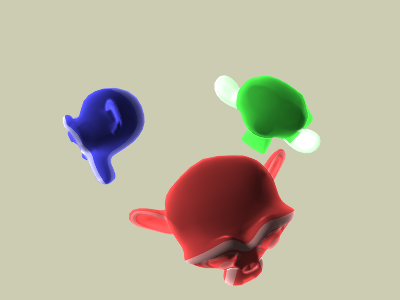

Shows how to use the BlenderMesh shape generator/loader

Copyright 2008-2014 Matus Chochlik. Distributed under the Boost Software License, Version 1.0. (See accompanying file LICENSE_1_0.txt or copy at http://www.boost.org/LICENSE_1_0.txt)

#include <oglplus/gl.hpp>
#include <oglplus/all.hpp>

#include <oglplus/shapes/blender_mesh.hpp>
#include <oglplus/shapes/wrapper.hpp>

#include <oglplus/opt/resources.hpp>
#include <oglplus/opt/list_init.hpp>

#include <cmath>

#include "example.hpp"

namespace oglplus {

class DepthProgram
 : public Program
{
private:
    const Program& prog(void) const { return *this; }
public:
    Lazy<ProgramUniform<Mat4f>>
        projection_matrix,
        camera_matrix,
        model_matrix;

    DepthProgram(void)
     : Program(ObjectDesc("Depth"))
     , projection_matrix(prog(), "ProjectionMatrix")
     , camera_matrix(prog(), "CameraMatrix")
     , model_matrix(prog(), "ModelMatrix")
    {
        VertexShader vs;
        vs.Source(
            "#version 330\n"
            "uniform mat4  ProjectionMatrix,CameraMatrix,ModelMatrix;"

            "in vec4 Position;"

            "void main(void)"
            "{"
            "   gl_Position = ProjectionMatrix * CameraMatrix * ModelMatrix * Position;"
            "}"
        );
        vs.Compile();
        AttachShader(vs);

        FragmentShader fs;
        fs.Source(
            "#version 330\n"
            "void main(void) { }"
        );
        fs.Compile();
        AttachShader(fs);

        Link();
    }
};

class ShapeProgram
 : public Program
{
private:
    const Program& prog(void) const { return *this; }
public:
    Lazy<ProgramUniform<Mat4f>>
        projection_matrix,
        camera_matrix,
        model_matrix;

    Lazy<ProgramUniform<Vec3f>> colors;

    ShapeProgram(void)
     : Program(ObjectDesc("Shape"))
     , projection_matrix(prog(), "ProjectionMatrix")
     , camera_matrix(prog(), "CameraMatrix")
     , model_matrix(prog(), "ModelMatrix")
     , colors(prog(), "Colors")
    {
        VertexShader vs;
        vs.Source(
            "#version 330\n"
            "uniform mat4  ProjectionMatrix,CameraMatrix,ModelMatrix;"
            "mat3 RotMatrix = mat3(ModelMatrix);"

            "const vec3 LightPosition = vec3(12.0, 11.0, 17.0);"

            "in vec4 Position;"
            "in vec3 Normal;"
            "in float Material;"

            "out vec3 vertLightDir;"
            "out vec3 vertNormal;"
            "flat out int vertMaterial;"
            "void main(void)"
            "{"
            "   gl_Position = ModelMatrix * Position;"
            "   vertLightDir = LightPosition - gl_Position.xyz;"
            "   vertNormal = RotMatrix * Normal;"
            "   vertMaterial = int(Material);"
            "   gl_Position = ProjectionMatrix * CameraMatrix * gl_Position;"
            "}"
        );
        vs.Compile();
        AttachShader(vs);

        FragmentShader fs;
        fs.Source(
            "#version 330\n"

            "uniform sampler2DRect DepthTex;"
            "uniform vec3 Colors[3];"

            "in vec4 gl_FragCoord;"

            "in vec3 vertLightDir;"
            "in vec3 vertNormal;"
            "flat in int vertMaterial;"

            "out vec3 fragColor;"
            "void main(void)"
            "{"
            "   float w = gl_FragCoord.w;"
            "   float sum_bz = 0.0;"
            "   const int nd = 2;"
            "   float ns = 0.0;"
            "   for(int dy=-nd; dy!=(nd+1); ++dy)"
            "   for(int dx=-nd; dx!=(nd+1); ++dx)"
            "   {"
            "       ivec2 TexelCoord = ivec2(gl_FragCoord.xy)+ivec2(dx, dy);"
            "       float bz = texelFetch(DepthTex, TexelCoord).x;"
            "       if(bz < 1.0)"
            "       {"
            "           sum_bz += bz;"
            "           ns += 1.0;"
            "       }"
            "   }"
            "   float DepthDiff = (sum_bz/ns)/w - gl_FragCoord.z/w;"
            "   DepthDiff =  clamp(pow(mix(1.0, 0.0, DepthDiff*4.0), 3.0), 0.0, 1.0);"
            "   vec3 Normal = normalize(vertNormal);"
            "   vec3 LightDir = normalize(vertLightDir);"
            "   float Ambi = 0.2;"
            "   float Diff  = 0.4*max(dot(LightDir, Normal)+0.1, 0.0);"
            "   fragColor = (Ambi + Diff + DepthDiff) * Colors[vertMaterial];"
            "}"
        );
        fs.Compile();
        AttachShader(fs);

        Link();
    }
};

class BlenderMeshExample : public Example
{
private:
    Context gl;

    shapes::ShapeWrapper monkeys;

    DepthProgram depth_prog;
    ShapeProgram draw_prog;

    static shapes::ShapeWrapper load_monkeys(void)
    {
        std::ifstream input;
        OpenResourceFile(input, "models", "monkeys", ".blend");
        if(!input.good())
            throw std::runtime_error("Error opening file for reading");

        imports::BlendFile blend_file(input);

        return shapes::ShapeWrapper(
            List("Position")("Normal")("Material").Get(),
            shapes::BlenderMesh(
                blend_file,
                List("Monkey1")("Monkey2")("Monkey3").Get(),
                shapes::BlenderMesh::LoadingOptions().Nothing().Normals().Materials()
            )
        );
    }

    VertexArray depth_vao, draw_vao;

    Texture depth_tex;

    GLuint width, height;
public:
    BlenderMeshExample(void)
     : gl()
     , monkeys(load_monkeys())
     , depth_prog()
     , draw_prog()
     , depth_vao(monkeys.VAOForProgram(depth_prog))
     , draw_vao(monkeys.VAOForProgram(draw_prog))
    {
        UniformSampler(draw_prog, "DepthTex").Set(0);
        Texture::Active(0);
        depth_tex.Bind(Texture::Target::Rectangle);

        gl.ClearColor(0.8f, 0.8f, 0.7f, 0.0f);
        gl.ClearDepth(1.0f);
        gl.Enable(Capability::DepthTest);
        gl.Enable(Capability::CullFace);
    }

    void Reshape(GLuint vp_width, GLuint vp_height)
    {
        width = vp_width;
        height = vp_height;
        gl.Viewport(width, height);

        Texture::Image2D(
            Texture::Target::Rectangle,
            0,
            PixelDataInternalFormat::DepthComponent,
            width,
            height,
            0,
            PixelDataFormat::DepthComponent,
            PixelDataType::Float,
            nullptr
        );

        auto projection =
            CamMatrixf::PerspectiveX(
                Degrees(60),
                double(width)/height,
                1, 20
            );
        draw_prog.projection_matrix.Set(projection);
        depth_prog.projection_matrix.Set(projection);
    }

    void Render(double time)
    {
        gl.Clear().ColorBuffer().DepthBuffer();

        auto camera =
            CamMatrixf::Orbiting(
                monkeys.BoundingSphere().Center(),
                7.0,
                FullCircles(time / 19.0),
                Degrees(SineWave(time / 17.0) * 90)
            );

        depth_prog.camera_matrix.Set(camera);
        draw_prog.camera_matrix.Set(camera);


        const Vec3f colors[3][3] = {
            {Vec3f(1.0, 0.3, 0.3), Vec3f(1.0, 0.5, 0.5), Vec3f(1.0, 0.7, 0.7)},
            {Vec3f(0.3, 1.0, 0.3), Vec3f(0.5, 1.0, 0.5), Vec3f(0.7, 1.0, 0.7)},
            {Vec3f(0.3, 0.3, 1.0), Vec3f(0.5, 0.5, 1.0), Vec3f(0.7, 0.7, 1.0)}
        };

        const Mat4f rot_matrices[3] = {
            ModelMatrixf::RotationA(Vec3f(1, 1, 1), Degrees(19 * time)),
            ModelMatrixf::RotationA(Vec3f(1, 1, 1), Degrees(31 * time)),
            ModelMatrixf::RotationA(Vec3f(1, 1, 1), Degrees(47 * time))
        };
        const Mat4f pos_matrices[3] = {
            ModelMatrixf::RotationY(Degrees(120))*
            ModelMatrixf::TranslationZ(2.0),
            ModelMatrixf::RotationY(Degrees(240))*
            ModelMatrixf::TranslationZ(2.0),
            ModelMatrixf::TranslationZ(2.0)
        };

        depth_prog.Use();
        gl.CullFace(Face::Front);
        monkeys.Draw(
            [this, &rot_matrices, &pos_matrices](GLuint phase) -> bool
            {
                this->depth_prog.model_matrix.Set(pos_matrices[phase]*rot_matrices[phase]);
                return true;
            }
        );

        Texture::CopyImage2D(
            Texture::Target::Rectangle,
            0,
            PixelDataInternalFormat::DepthComponent,
            0, 0,
            width,
            height,
            0
        );

        draw_prog.Use();
        gl.CullFace(Face::Back);
        monkeys.Draw(
            [this, &colors, &rot_matrices, &pos_matrices](GLuint phase) -> bool
            {
                for(GLuint i=0; i!=3; ++i)
                    this->draw_prog.colors[i].Set(colors[phase][i]);
                this->draw_prog.model_matrix.Set(pos_matrices[phase]*rot_matrices[phase]);
                return true;
            }
        );
    }

    bool Continue(double time)
    {
        return time < 30.0;
    }
};

void setupExample(ExampleParams& /*params*/){ }

std::unique_ptr<ExampleThread> makeExampleThread(
    Example& /*example*/,
    unsigned /*thread_id*/,
    const ExampleParams& /*params*/
){ return std::unique_ptr<ExampleThread>(); }

std::unique_ptr<Example> makeExample(const ExampleParams& /*params*/)
{
    return std::unique_ptr<Example>(new BlenderMeshExample);
}

} // namespace oglplus
